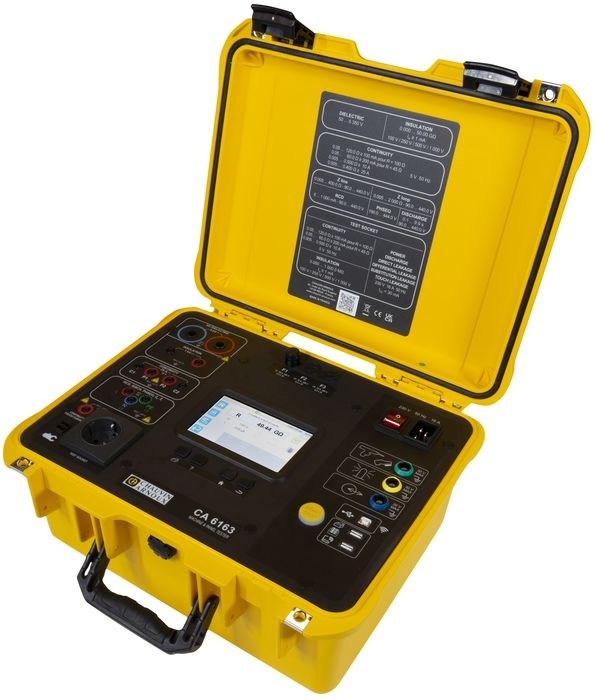

Chauvin Arnoux CA 6163 ເຄື່ອງ​ທົດ​ສອບ switchboard ເຄື່ອງ​ແລະ​ໄຟ​ຟ້າ​ (40 - 5,350 V, 200 mA)

High voltage

High voltage: 40 - 5,350 V

Resolution / accuracy: 10 V / ±(1% R + 2 cts)

Max. current: 200 mA

I measurement ranges: 100 mA / 200 mA

Resolution / accuracy: 0.1 mA - 1 mA / ±(2% R + 2 cts)

Insulation

Test voltage: 100 V / 250 V / 500 V / 1,000 V

Max. measurement: 50 GΩ

Range: 9.999 MΩ / 99.99 MΩ / 999.9 MΩ / 50.00GΩ

Resolution / accuracy: 1 kΩ - 10 kΩ - 100 kΩ/ ±(2% R + 2 cts), 10 MΩ / ±(10% R + 2 cts)

Automatic discharge

Continuity

Measurement current: 0.1 A; 0.2 A; 10 A (voltage drop)

Measurement range: 20 Ω / 120 Ω; 2 Ω / 20 Ω / 60 Ω; 0.5 Ω

Resolution: 0.01 Ω / 0.1 Ω; 0.01 Ω / 0.01 Ω / 0.1 Ω ; 0.001 Ω

Accuracy: ±(2% R + 2 cts) / ±(3% R + 3 cts)

Display: Colour touch screen; TN 800 x 480, 5"

Data storage: 100,000 tests

Timer max.: 40 min (depends on type of test)

Communication: 1 x USB-B; 2 x USB-A, Wifi

Interfaces: START/STOP pedals, DOOR Open, HV gun trigger, 4 lamps,, Barcode reader, RFID reader, sticker printer

Power supply: 230 VAC ±10%; 220 VAC -6% + 15 %

Dimensions / weight: 407 x 341 x 205 mm; 16 kg

Temperature OPERATION: 0; + 45 °C ; STORAGE: - 30; + 60 °C

Delivered with a standard carrying bag with:

1 x C19 – Schuko mains cable, length 2.5 m

1 x USB A/B cable

2 x high-voltage test guns (red and blue) with a 3 m cable

2 x elbowed-straight safety cables (red and black), length 3 m

3 x extension connectors (green, yellow, blue)

4 x test probes (black, red, green, blue)

1 x “tripod”- cable - 3 safety cables, length 2.5 m

1 x “tripod” – Schuko cable, length 2.5 m

1 x multilingual Quick Start Guide

1 x multilingual safety datasheet

1 x Test report with measurement values

3 x  crocodile clips (red, green, blue)

1 x 25 A Kelvin crocodile clip with a 2.5 m cable

1 x 25 A Kelvin test gun with a 3 m cable
