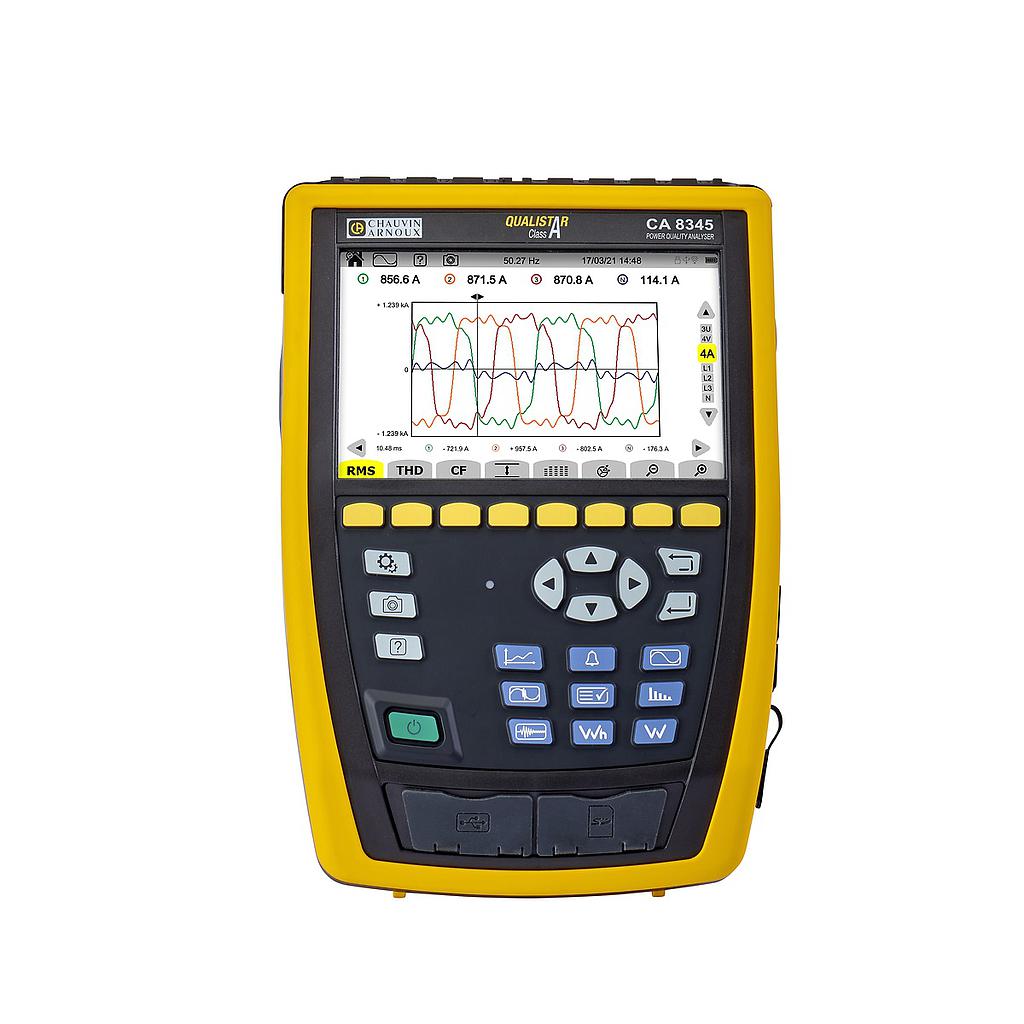

Chauvin Arnoux C.A 8345 ເຄື່ອງວິເຄາະຄຸນນະພາບພະລັງງານ (5V~1,000Vac Vdc; Class A)
Inputs: Voltage/current, isolated
Voltage: 5 V to 1,000 Vac and Vdc
IEC 61000-4-30 (Ed 3): Class A (Full)
Screen: 7" colour LCD touch screen: 800 x 480 (WVGA)
Clock / GPS: Yes, built-in
Real-time mode: Yes
Sampling rate: Voltage 400 kSps / Current 200 kSps / Surge 2 MSps
Power mode: Yes
Energy mode: Yes
Unbalance mode: Composite
Harmonics mode: DC to 63rd order
Interharmonics mode: 0 to 62nd order
Trend recording: > 900 parameters
Alarm mode (types / number): 52 / 20,000
Carrier current detection mode: Yes
Inrush capture (number): 100
2.5 μs transients (number): No maximum (SD card)
Shockwaves: Up to 12 kV sampled every 500ns
EN50160 monitoring mode: With PAT3 software
USB communication: Yes
SD card: Accessible, external
Ethernet: Yes
Wifi: Yes
Web server: Yes
USB key port (Type A): Yes
Battery cartridge: Li-ion – 5800 Ah
IEC 61010 safety: CAT IV 1000V
Protection: IP54
Operating temperature: [+0°C; +40°C]
Environmental compliance: IEC 61557-12 & IEC 62586
Dimensions (HxLxD): 200x285x55mm / 1.9kg
