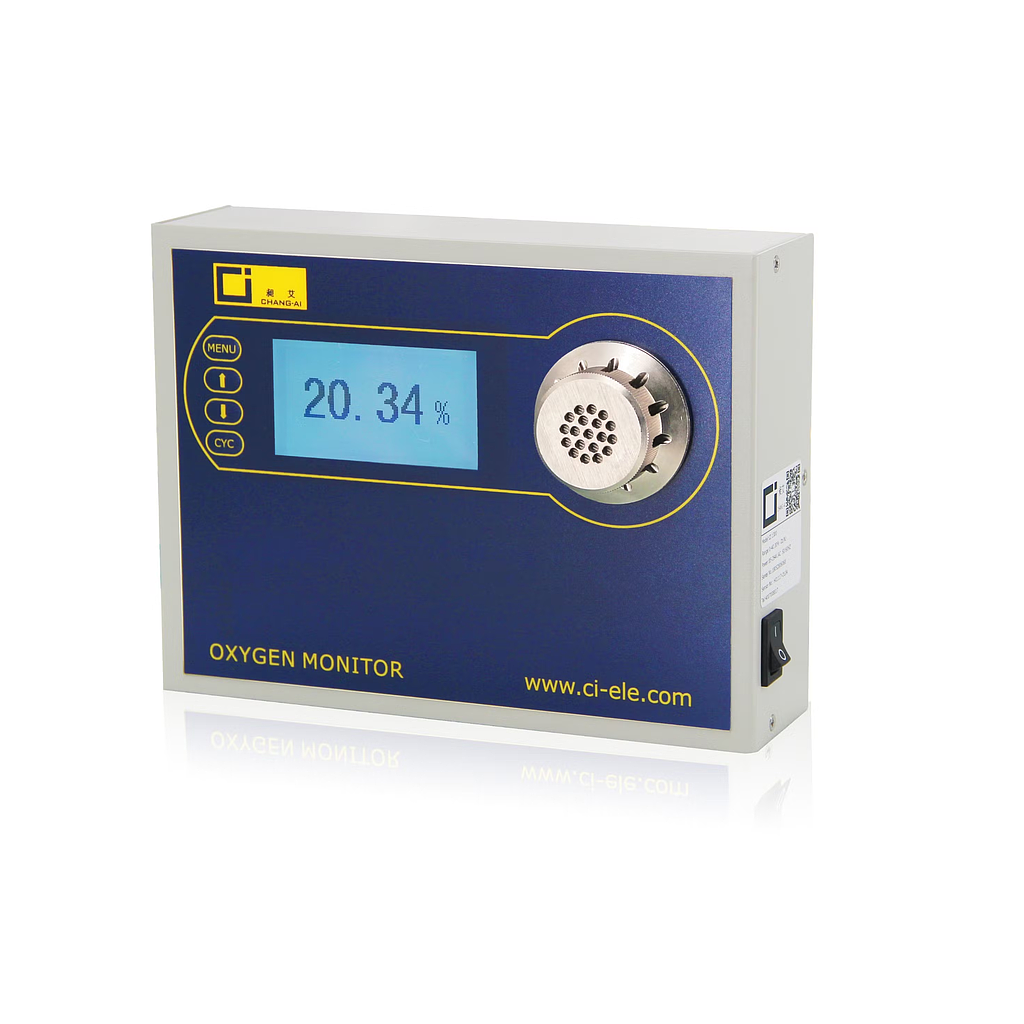

Chang AI CI1300 ຈໍສະແດງຜົນອົກຊີເຈນ (0~40% O2)

Measure range: 0~40% O2

Measurement mode: gas diffuser

Accuracy: ±1.5%FS

Repeatability: ±1%FS

Stability: ±1%FS/7d

Response time: T90<30s

Sensor: Ion flow oxygen sensor

Display: 128×64 LCD

Display resolution: 0.01%

Power supply: AC220V±10%,50/60Hz

Alarm output: two groups of programmable alarm output

Communication: RS485

Select a set of analog outputs: 4-20mA/0-20 mA/0-10V

Environmenttemperature: 0~+45°C

Environment humidity: <80%RH

Composition of Measured gases: Nitrogen-Oxygen Mixture

Calibration cycle: one year (recommended)

Installation: wall-mounted

Calibration gas: air

Chassis: metal chassis (spray paint)

Key: Four key (switch mask)

Sensor room: Aluminum Alloy Nickel-plated, Tightening Type

Measuring method: on-line

Relay contact point capacity: 24VDC,0.2A

Circuit structure: applied to non-hazardous situations.

Weight: 1.4kg net
