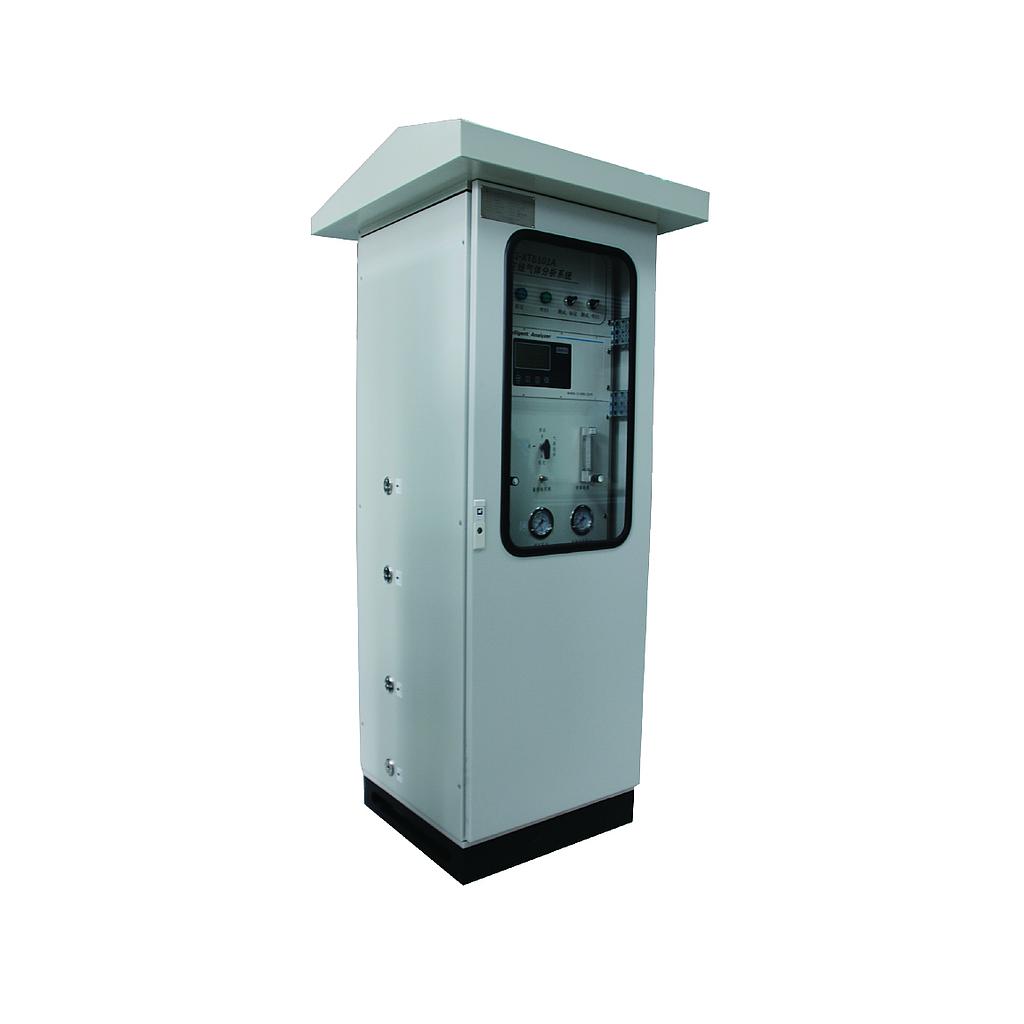

Chang AI CI-XT6400 ລະບົບການວິເຄາະອອນໄລນ໌ສໍາລັບເຄື່ອງກໍາເນີດອາຍແກັສ (0-25.0% O2)

Measurement components and ranges: 0-25.0% O2 Can be extended according to user needs

Detection principle: Magneto-mechanical Technology

System power supply: 220 VAC±10% 50/60Hz

System power consumption: Less than 50VA

Alarm: 1-way alarm output

Relay contact capacity: 24VDC, 0.2A

Signal output: A group of 4-20 mA outputs correspond to O2 respectively.

Environmental temperature: 0-45°C; Environmental humidity:Less than 80% RH

Intake pressure: Use of suction pumps at negative and micro-positive pressures

Sample flow rate: 4-6L/min

Inlet and outlet Interfaces: G1/4 Internal Thread Interface

Analyzer life: More than 5 years (normal use)

Installation mode: Base expansion screw fixation

Circuit structure: Applied in low explosion-proof or non-explosion-proof occasions

Calibration of analyzer: It is suggested that three or four standard gases and high purity nitrogen should be prepared for each calibration of zero and range points once a year.

System size: D*W*H=600mm*600mm*1750mm

Housing dimensions: D*W*H=2000mm*2000mm*2500mm

Packing box: Wooden box packing

System weight: About 100 Kg
