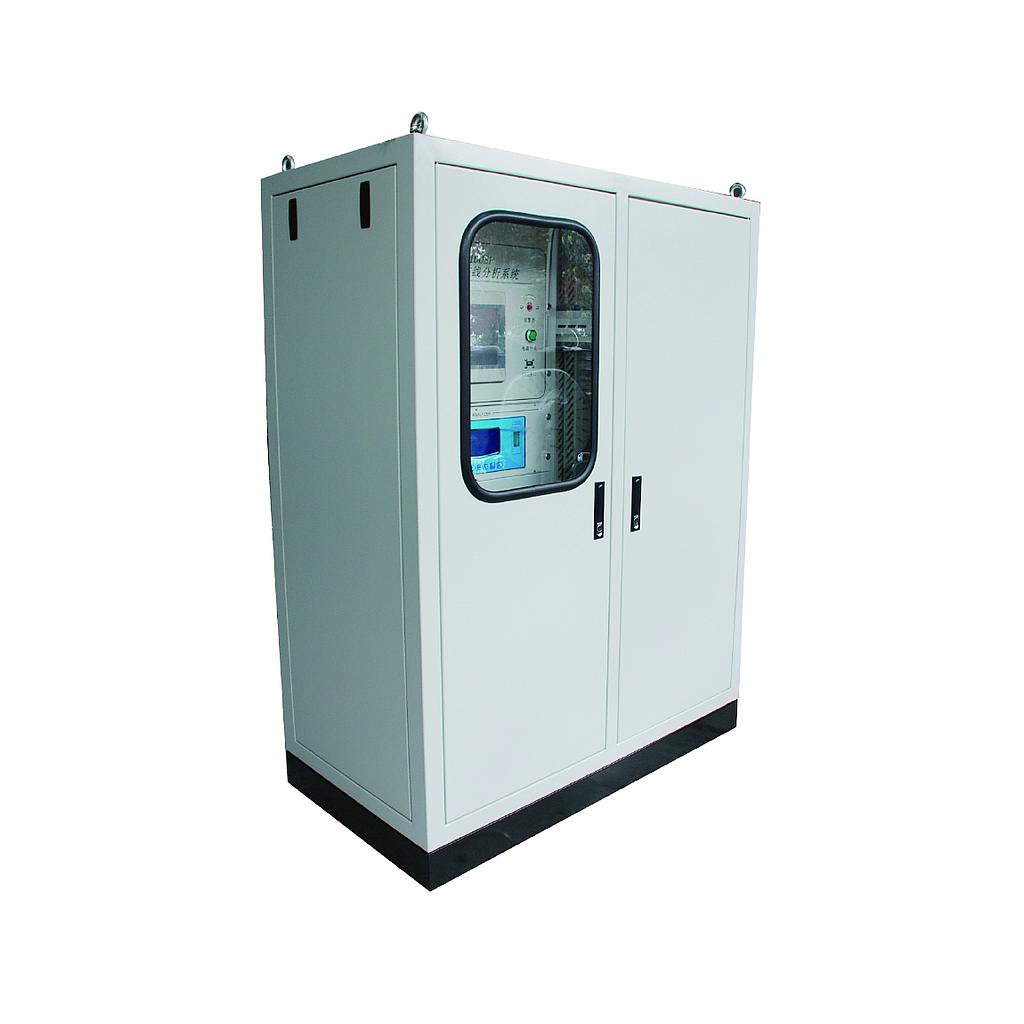

Chang AI CI-XT6003C Brazing furnace ລະບົບການວິເຄາະອອນໄລນ໌ສໍາລັບການກວດກາຫຼາຍຈຸດ (0-1000ppm O2)

Measurement components and ranges: 0-1000ppm O2 Arbitrarily scalable or configurable

Detection principle: Electrochemical gas sensor

System power supply: 220 VAC±10% 50/60Hz

System powerconsumption: Less than 50VA

Alarm: 1-way alarm output

Relay contact capacity: 24VDC,0.2A

Signal output: A group of 4-20 mA outputs correspond to O2 respectively.

Environmental temperature: 0-45℃; Environmental humidity:Less than 80% RH

Intake pressure: Use of suction pumps at negative and micro-positive pressures

Sample flow rate: 4-6L/min

Inlet and outlet interfaces: G1/4 Internal Thread Interface

Analyzer life: More than 5 years (normal use)

Installation mode: Base expansion screw fixation

Circuit structure: Applied in low explosion-proof or non-explosion-proof occasions

System warranty period: 12months

Calibration of analyzer: It is suggested that three or four standard gases and high purity nitrogen should be prepared for each calibration of zero and range points once a year.

System size: D*W*H=1200mm*650mm*1600mm

Housing dimensions: D*W*H=2000mm*2000mm*2500mm

Packing box: Wooden box packing

System weight: About 120 Kg
