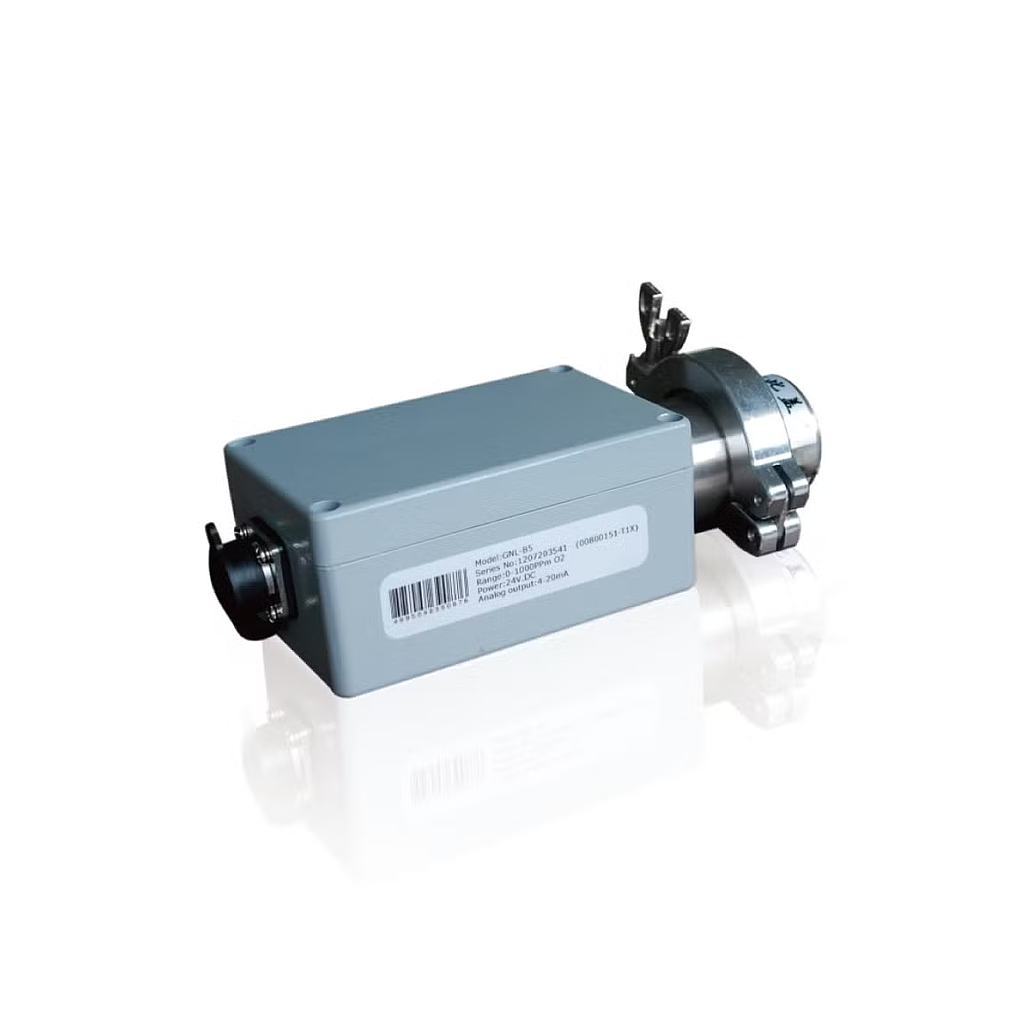

Chang AI CI-PC981 ເຄື່ອງສົ່ງອົກຊີຈຸນລະພາກ (0-10/100/1000 ppm O2; KF40)

Installation mode:  KF40(Standard Type)

Security Category:  Intrinsically safe

Measure range: 0-10/100/1000 ppm O2

Accuracy:

0.01~9.99ppm O2:±5% FS

10.0~99.9ppm O2:±3% FS

100~1000ppm O2:±2% FS

Repeatability:

0.01~9.99ppm O2:±2.5% FS

10.0~99.9ppm O2:±1.5% FS

100~1000ppm O2:±1% FS

Stability:

0.01~9.99ppm O2:±2.5% FS/7d

10.0~99.9ppm O2:±1.5% FS/7d

100~1000ppm O2:±1% FS/7d

Response time: T90≤60s

Sensor: Fuel cell oxygen sensor

Analyzer power consumption: <10VA

Analog output: 4~20mA(Load resistance is not more than 500 Ω). GNL-B5 the current signal output is 4-wire system. CI-PC981 the current signal output is 2-wire system

Power supply: 24VDC,0.42 A

Environment temperature: 0~45°C

Environment humidity: <90%RH(25°C)

Sample temperature: 5~45°C

Sample flow rate: 800~1000ml/min

Weight:  1.2kg
