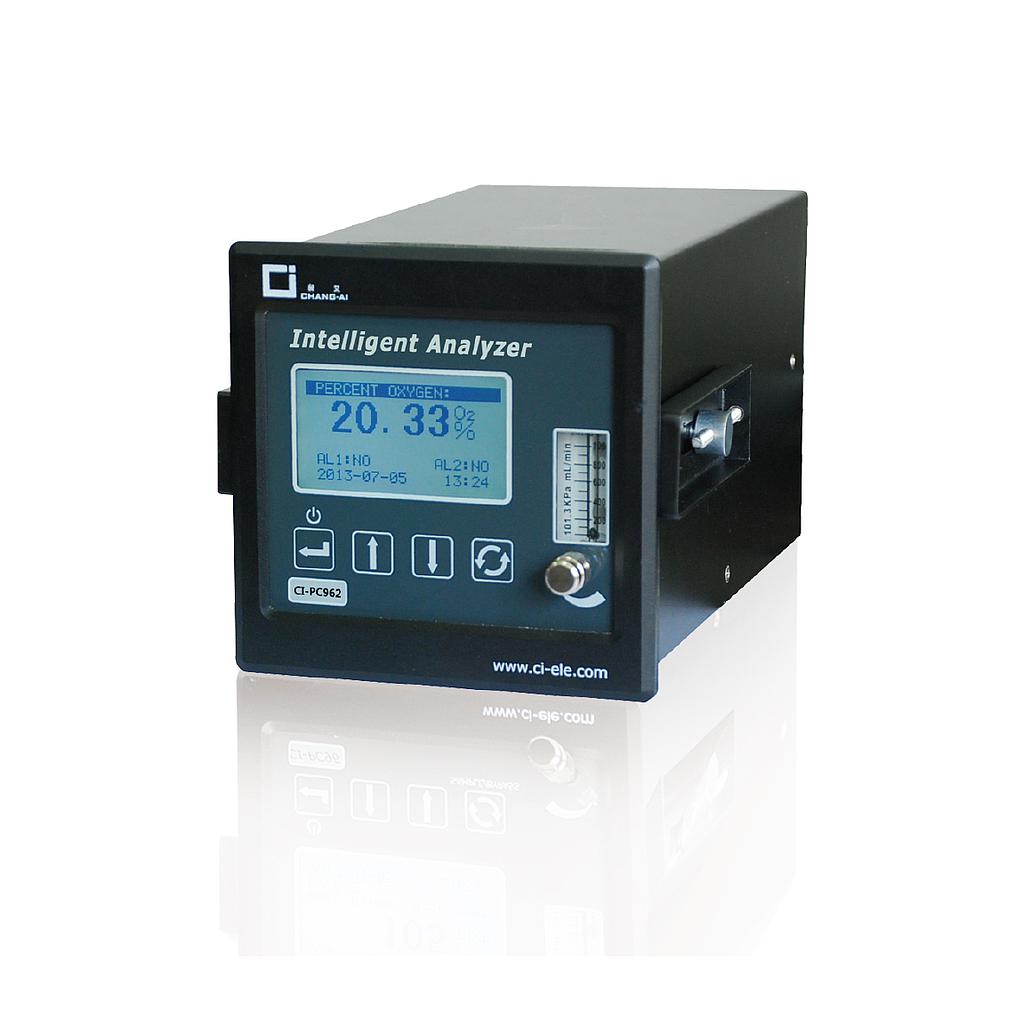

Chang AI CI-PC962 ເຄື່ອງວິເຄາະອົກຊີເຈນທາງໄຟຟ້າເຄມີ (0~25.00% O2)

Measure range: 0~25.00% O2

Accuracy: ±2% FS

Repeatability: ±1% FS

Stability: ±1% FS/7d

Response time: T90<20s

Sensor principle: Electrochemical Sensor

Power supply: 85~264VAC,50/60Hz

Environment temperature: 0~45°C Environment Humidity:<90%RH

Sample gas pressure: atmospheric conditions±10% (Gas outlet should be atmospheric conditions)

Sample gas flow rate: 500~1000ml/min

Storage temperature: -5~+50°C

External control signal: A set of 9-28VDC signals can be connected to control pumps (optional)

Communication: RS485(standard)/RS232(optional)

Signal output: 2 sets

Relay contact point capacity: 24VDC,0.2A

Instrument size: 144mm(W)×144mm(H)×251mm(D)

Instrument installation dimensions: 136mm×136mm

Instrument weight: self-weight 3 kg,packing about 4.5 kg

Packing box size: (L×W×H=400mm×295mm×285mm)

Single point calibration: The electrochemical sensor outputs a voltage signal corresponding to the oxygen concentration in the sample as.According to the linearity of the voltage signal,single point calibration can achieve accurate measurement.
