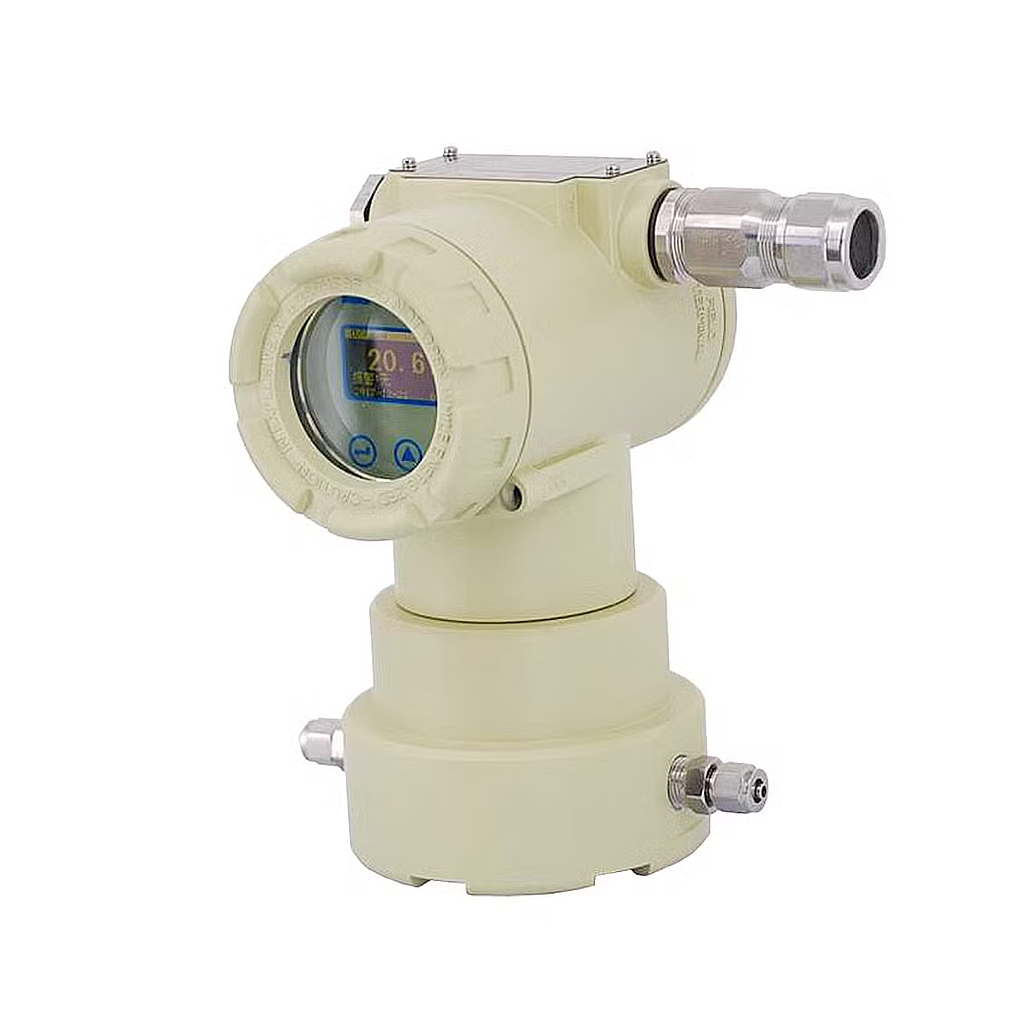

Chang AI CI-PC951-2 ເຄື່ອງວິເຄາະອັອກຊີເຈນເພື່ອປ້ອງກັນການລະເບີດ (0~25.00% O2)

Sensor: electrochemical sensor

Measure range: 0~25.00% O2

Accuracy: ±2%FS

Repeatability: ±1%FS

Stability: ±1%FS/7d

Response time: T90<20s

Explosion-proof grade: Exd || CT6

Protection level: IP65

Measuring method: on-line

Display: 128×64 OLED

Key: 3 touch keys

Calibration cycle: one year (recommended)

Power supply: 24VDC

Analyzer power <15VA

consumption: RS485/RS232

Communication: 1 set,4-20mA/0-20mA/0-1V/0-5V/0-10V/ 1-5V(You can set the mode freely). The load:less than 500 Ω

Analog output: Alarm output:1 set

Switch output: Relay contact point capacity:24V DC,0.2A

Environment -10~+45°C

temperature: <90%RH

Environment humidity: 500~1000ml/min

Sample flow rate: atmospheric conditions±10% (Gas outlet

Sample gas pressure: should be atmospheric conditions)

Gas interface: 1/4-inch NPT internal thread,standard 6.5 hose joint

Sensor life: more than 2 years (normal use)

Instrument life: more than 5 years (normal use)

Weight: 2.35kg net

Installation: wall-mounted
