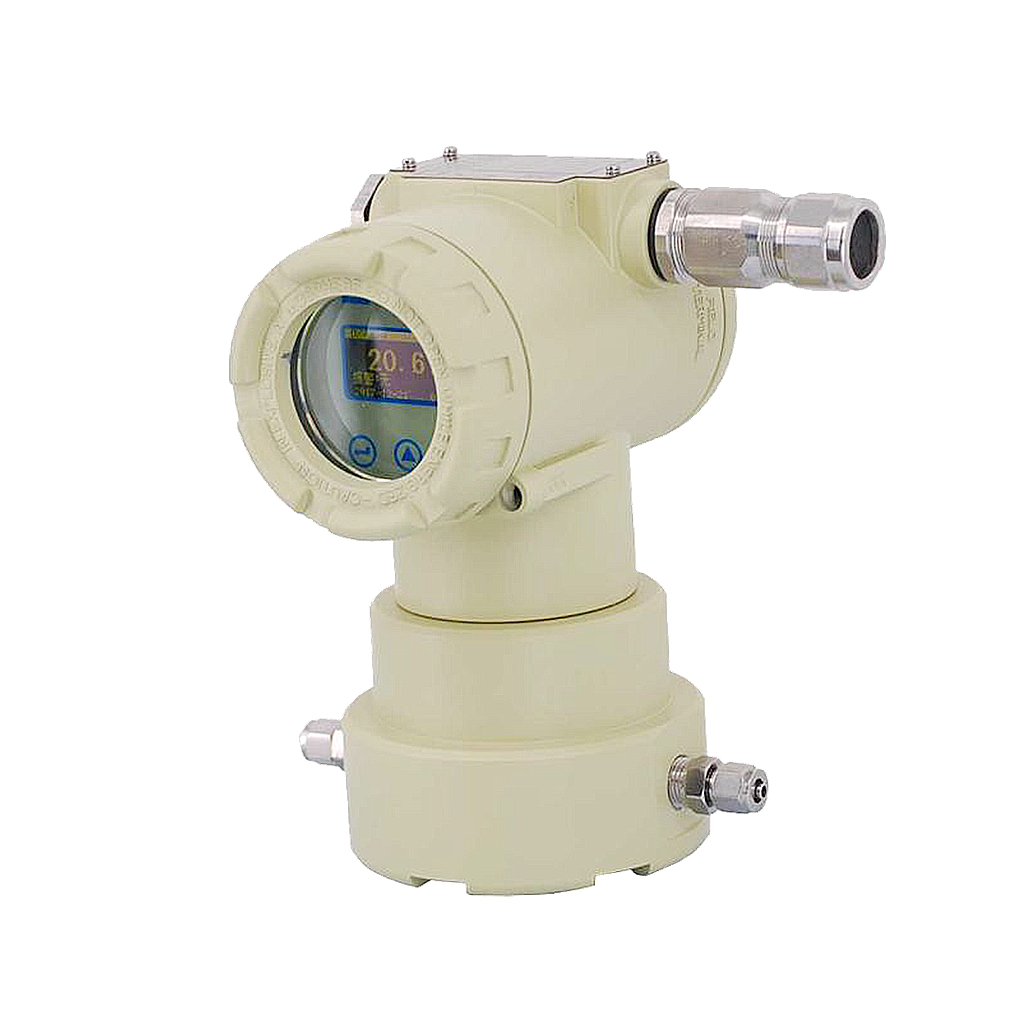

Chang AI CI-PC95-2 ເຄື່ອງວິເຄາະອົກຊີເຈນຕາມຮອຍທີ່ປ້ອງກັນການລະເບີດ (0~10/100/1000ppm/1%/25.00% O2)

Sensor: Fuel cell oxygen sensor

Measure range: 0~10/100/1000ppm/1%/25.00% O2

Accuracy:

0.01~9.99ppm O2:±5%FS

10.0~99.9ppm O2:±3%FS

100~1000ppm O2:±2%FS

Repeatability:

0.01~9.99ppm O2:±2.5%FS

10.0~99.9ppm O2:±1.5%FS

100~1000ppm O2:±1%FS

Stability:

0.01~9.99ppm O2:±2.5%FS/7d

10.0~99.9ppm O2:±1.5%FS/7d

100~1000ppm O2:±1%FS/7d

Response time: T90<60s(25°C)

Explosionproof grade: Exd || CT6

Protection level: IP65

Calibration cycle: one year (recommended)

Power supply: 24VDC

Analyzer power: <15VA

consumption: RS485/RS232

Analog output: 1 set,4-20mA/0-20mA/0-1V/0-5V/ 0-10V/1-5V (You can set the mode freely).

The load: less than 500 Ω

Switch output: Alarm value:1; Relay contact point capacity:24V DC,0.2A

Environment temperature: -10~+45°C Environment Humidity:<90%RH

Sample gas pressure: atmospheric conditions±10% (Gas outlet should be atmospheric conditions)

Sample flow rate: 1.5~2L/min

Inlet and outlet: 1/4-inch NPT internal thread,standard 6.5 hose joint

Sensor life: more than 2 years (normal use)

Instrument life: more than 5 years (normal use)

Weight: Net weight 2.0 kg

Installation: wall-mounted
