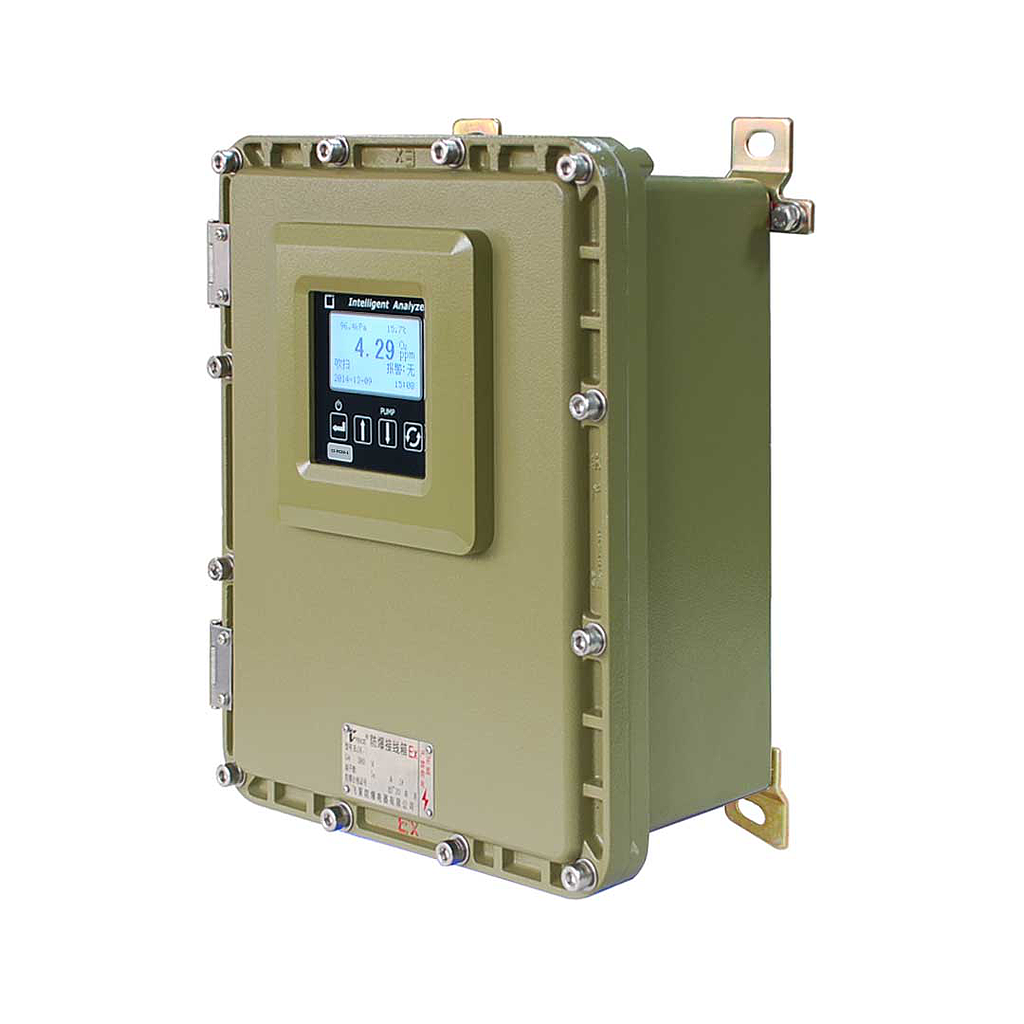

Chang AI CI-PC95-1 ເຄື່ອງວິເຄາະອົກຊີເຈນຕາມຮອຍທີ່ປ້ອງກັນການລະເບີດ

Sensor: Electrochemical sensor

Accuracy:

0.01~9.99ppm O2:±5% FS

10.0~99.9ppm O2:±3% FS

100~1000ppm O2:±2% FS

Repeatability:

0.01~9.99ppm O2:±2.5% FS

10.0~99.9ppm O2:±1.5% FS

100~1000ppm O2:±1% FS

Stability:

0.01~9.99ppm O2:±2.5% FS/7d

10.0~99.9ppm O2:±1.5% FS/7d

100~1000ppm O2:±1% FS/7d

Response time: T90<60s(25°C)

Protection level: IP64

Calibration cycle: one year (recommended)

Power supply: 24V DC

Analyzer power consumption: <15VA

Communication: RS485(standard)/RS232(optional)

Environment temperature: -10~45°C Environment Humidity:<90%RH

Switch output: Alarm value:1

Analog output: 1 set,4-20mA/0-20mA/0-1V/0-5V/0-10V/1-5V (You can set the mode freely).

The load: less than 500Ω

Sample gas pressure: atmospheric conditions±10% (Gas outletshould be atmospheric conditions)

Sample flow rate: 1.5~2L/min

L×W×H=375×315×179mm ; Level of explosion-proof:Exd || CT6 (certification)
