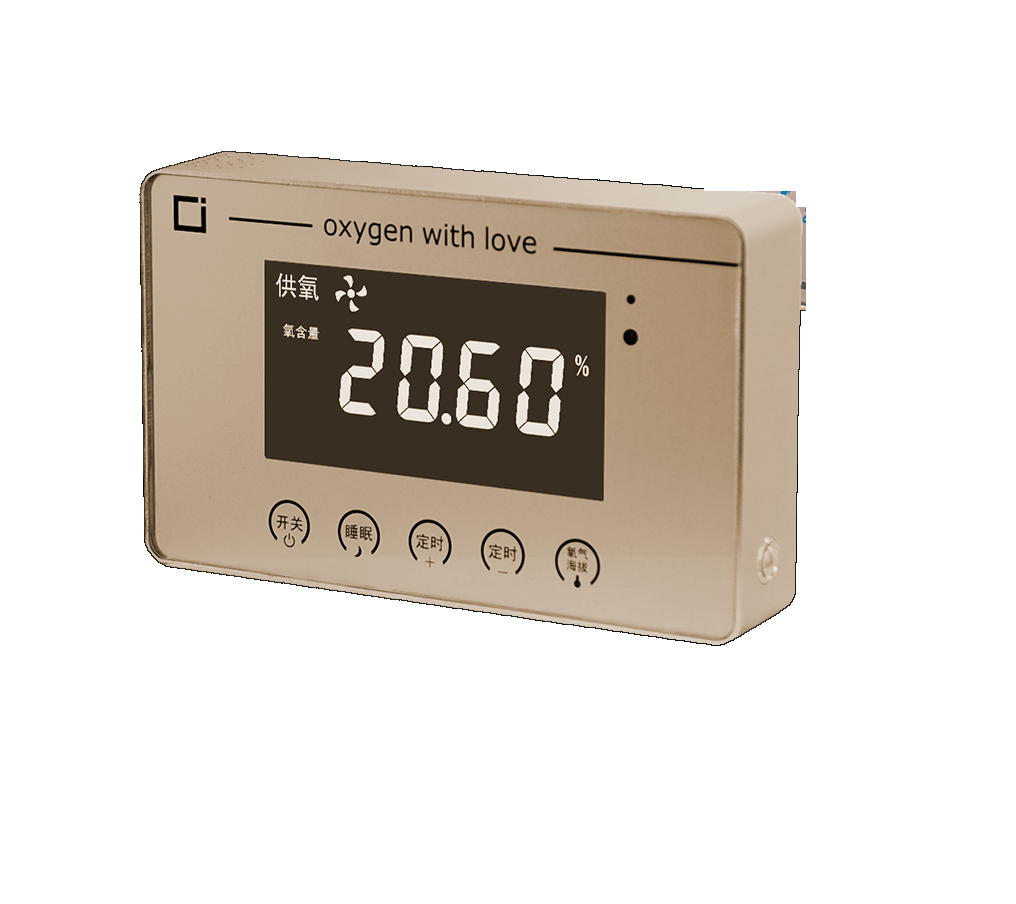

Chang AI CI-PC896 ເຄື່ອງມືຕິດຕາມການກະຈາຍຂອງອົກຊີໃນພູພຽງ (0~40.00% O2)

Measurement principle: 3D ion flow sensor

Measurement range: 0~40.00% O2

Accuracy: ±1% FS

Repeatability: ±0.5% FS

stability: ±0.5% FS/7d

response time: T90<20s

Power: 85~264VAC,50/60Hz

Input powe: ≤20VA

Control mode: Touch,infrared remote,remote control (communication)

Use environment: -10~50°C Humidity:<80%RH,No Cold Water

Measuring media: Gases or inert gases cannot contain corrosive gases (such as HF,Cl2,HCl,SO2,H2S,etc.), toxic substances (such as Si,Pb,P,Zn,Sn,As,etc.)

Storage environment: Temperature:-20 to 60°C Humidity:<80%RH, No Cold Water;When the storage and transportation environment temperature is below 5°C,the equipment should be placed in the normal operating temperature environment for more than 4 hours

Switch amount/ Voltage Output: (Two choose one) Switch Amount:3 groups. Relay contact capacity:24VDC,0.2A. Voltage output:Three groups of 5~12- VDC can be used to control external solenoid valves. Each group less than 7VA

Communication: (Five choose one) RS485 (standard),RS232 (optional),WIFI (optional),Bluetooth (optional),WAN(Selected)

Diffuse terminal: (Three choose one) CI-MS01,CI-MS02,CI-MS05
