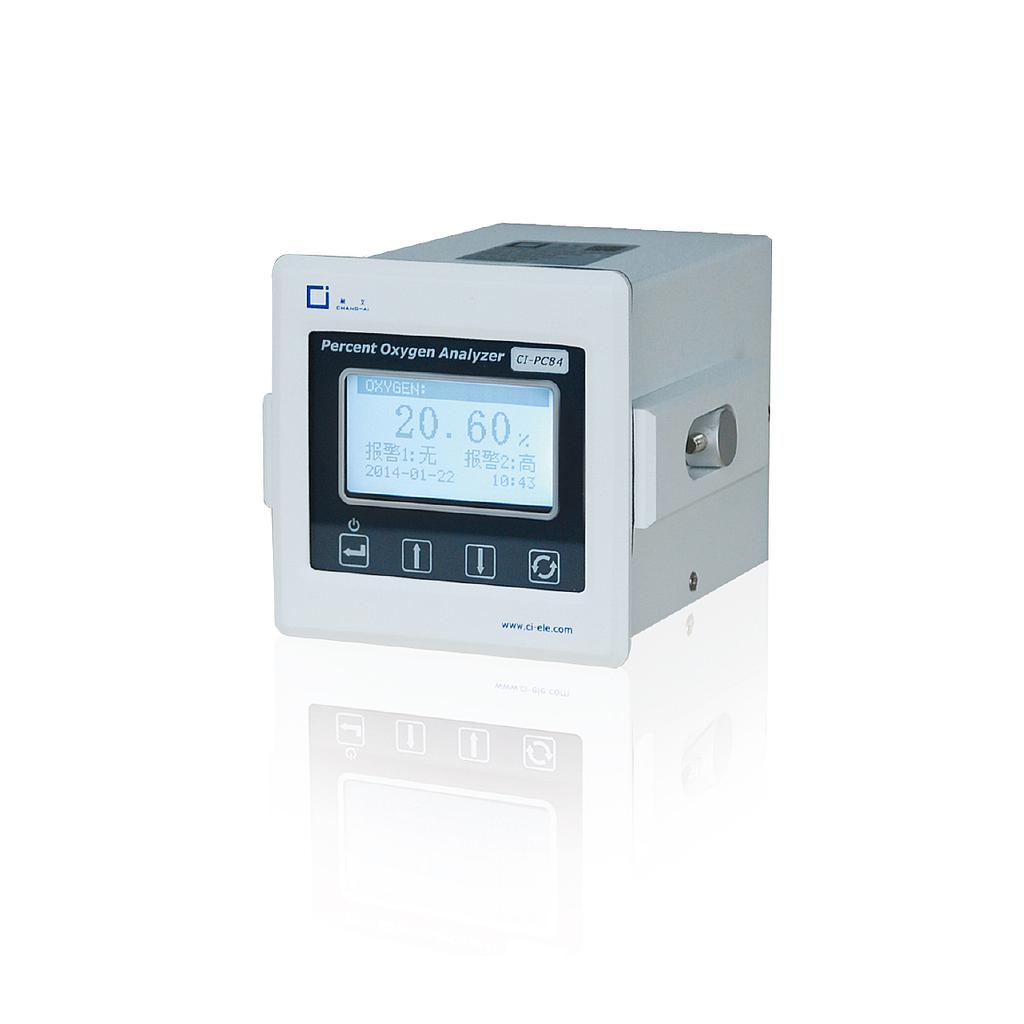

Chang AI CI-PC84 ເຄື່ອງວິເຄາະອົກຊີເຈນທີ່ມີເນື້ອໃນສູງ (10%~95%/99.99% O2)

Display: 128×64 LCD

Measure range: 10%~95%/99.99% O2

Accuracy: ±1%FS

Repeatability: ±0.5%FS

Stability: ±0.5%FS/7d

Response time: T90<15s

Sensor: 3D Ion flow oxygen sensor

Instrument weight: net weight is about 1.6 kg

Power supply: 85~264VAC,50/60Hz

Analyzer power consumption: <20VA

Environment temperature: -10~55°C

Environment humidity: <85%RH

Sample flow rate: 400~600ml/min

Analog output: 1 set,4-20mA/0-20mA/0-1V/0-5V/0-10V/ 1-5V,(You can set the mode freely).

Communication: RS485(standard)/RS232(optional)

Alarm output: 2 set

Relay contact point capacity: 24VDC,0.2A

Sample gas pressure: atmospheric conditions±10% (Gas outlet should be atmospheric conditions)

Key: Four keys (touch keys)

Circuit structure: applied to non-hazardous situations.

Calibration cycle: one year (recommended)

Gas interface: 1/4-inch NPT internal thread
