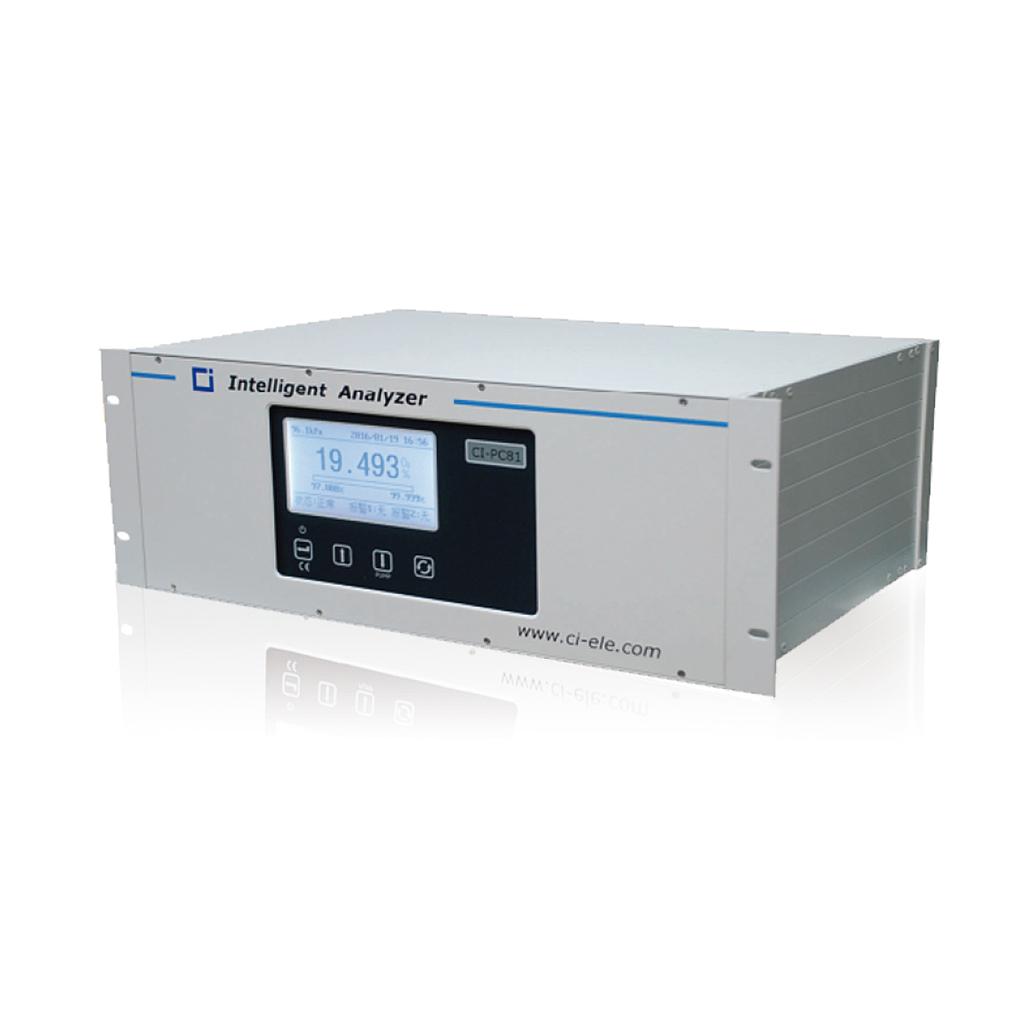

Chang AI CI-PC81 ເຄື່ອງວິເຄາະອົກຊີເຈນທີ່ມີເນື້ອໃນສູງ (10.00%~97.00%/ 99.999% O2)

Measure range: 10.00%~97.00%/ 99.999% O2

Sensor: 3D Ion flow oxygen sensor

Accuracy: ±1%FS

Repeatability: ±0.5%FS

Stability: ±0.5%/7d

Response time: T90<20s

Circuit structure: applied to non hazardous situations.

Data storage: SD Card (Standard)/U Disk (Optional)

Power supply: 85~264VAC,50/60Hz

Analyzer power consumption: <35VA

Communication: RS485(standard)/RS232(optional)

Switch output:  6 sets; Relay contact point capacity:24V DC,0.2A

Analog output: 1 set,4-20mA/0-20mA/0-1V/0-5V/0-10V/ 1-5V,(You can set the mode freely). The load:less than 500 Ω

External input: Five groups

Environment Control signal 9~28VDC

temperature: -10~45°C Environment Humidity:<90%RH

Sample gas pressure: atmospheric conditions±10% (Gas outlet should be atmospheric conditions)

Instrument size: L×W×H=483mm×300mm×177mm
