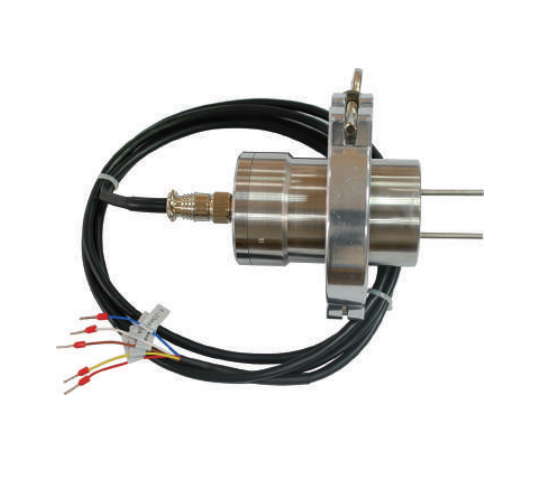

Chang AI CI-PC582 ຕິດຕາມເຄື່ອງສົ່ງ hydrogen (0~10000ppm H2)

Measuring range: 0~10000ppm H2

Sensor: Electrochemical hydrogen sensor

Accuracy: ±2%FS

Repeatability: Cv<1%FS

Stability: ±1%FS/7d

Response time: T90<90s

Resolution: 1ppm

Measurement medium: O2,N2,Ar,etc.

Sensor life: Sensor life:more than 2 years (normal use)

Analyzer life: Analyzer life:more than 5 years (normal use)

Power supply: 24VDC,power consumption is less than 6VA

Ambient temperature: 0~45°C Ambient humidity:<80% RH

Sample gas pressure: normal pressure ±10%

Installation: KF50 vacuum flange

Output configuration

Analog output: 4-20mA(standardconfiguration) /0-20mA/0-1V/0-5V/0-10V/1-5V

Communication:  RS485(connected with display meter head)
