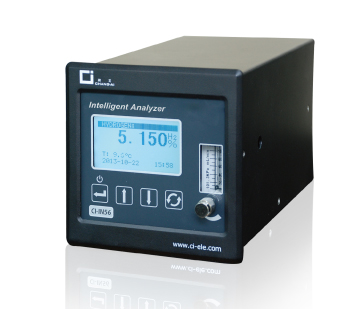

Chang AI CI-PC56 ເຄື່ອງວິເຄາະການນໍາຄວາມຮ້ອນ

Possible Minimum Range

H2: 0~100%

He: 0~2%

Ar: 0~10%

CO2: 0~20%

CH4: 0~15%

H2 in Blast Furnace Gas: 0~10%

H2 in acid converter gas: 0~20%

H2 in Wood Gasification: 0~30%

Accuracy: ±2%FS

Repeatability: ±1%FS

Stability: ±1% FS/7d

Response time: T90<30s

Power supply: 85~264VAC,50/60Hz

Environmental temperature: 5~45°C Environmental humidity:less than 90% RH

Sample pressure: Atmospheric pressure ±10% (outlet should be atmospheric pressure)

External control signal: A set of 9-28VDC signals can be input to control pumps (optional)

Interference gas compensationsignal: Input two sets of compensation signals of 4-20mA interference gas

Analog output: Standard configuration of two groups of 4-20mA analog output,through the menu freely set 4-20mA,0-20mA,0-1V,0-5V, 0-10V output mode

Communication: RS485 (Standard Matching)/RS232 (Optional Matching)

Alarm output: Two groups of gas concentration alarm  switch output,two groups of range label switch output (automatic range),a group of error alarm switch output

Relay contact capacity: 24VDC,0.2A
