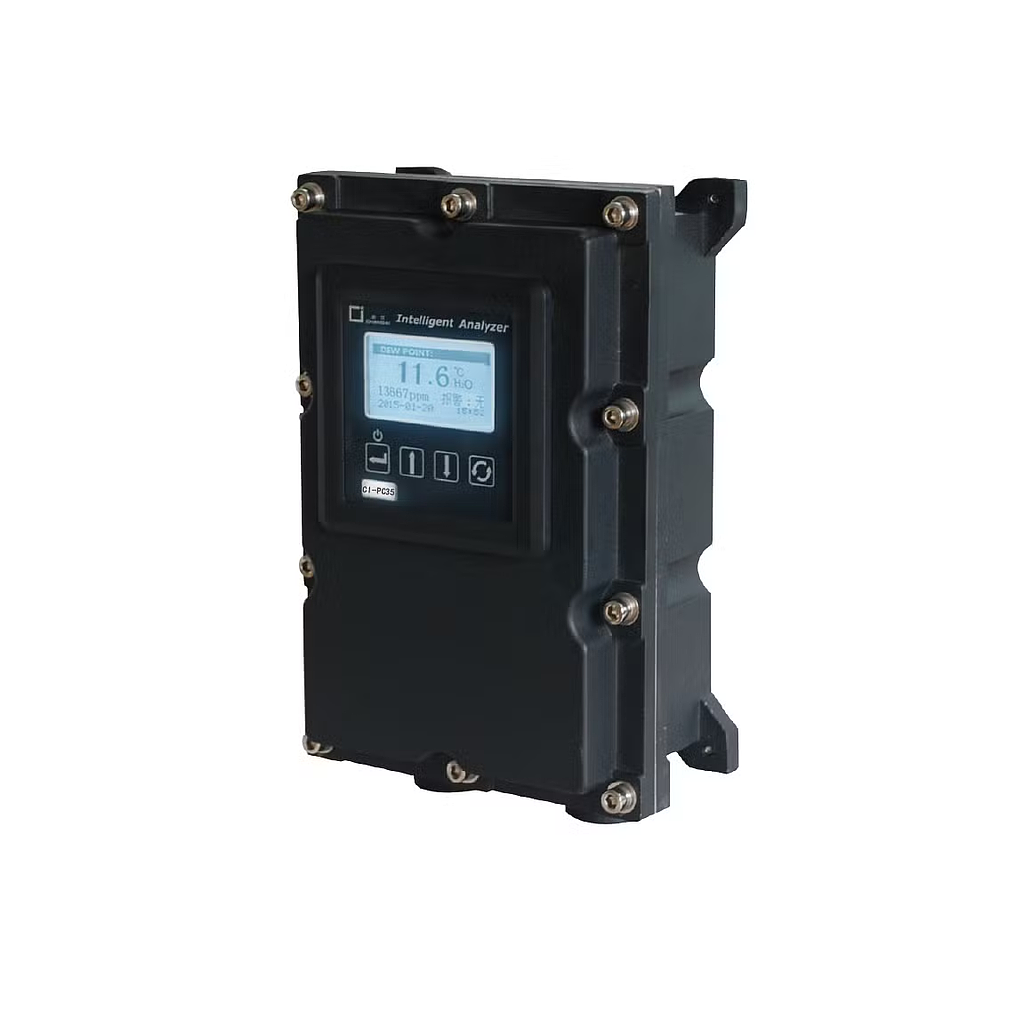

Chang AI CI-PC35 ເຄື່ອງວິເຄາະຈຸດນ້ຳຄ້າງລະເບີດ (-60~+20°C)

Sensor: ultra-thin alumina capacitive sensor

Measure range: -60~+20°C

Accuracy: ±3°C(-80~-60°C); ±2°C(-60~+20°C)

Repeatability: ±0.5°C

Zero drift: ±1%FS/7d

Range drift: ±1%FS/7d

Response time: T90<30s

Protection level: IP64

Calibration cycle: one year(recommended)

Power supply: 24VDC

Analyzer power consumption: <20VA

Communication: RS485(standard)/RS232(optional)

Environment temperature: 0~45°C

Environment humidity: <90%RH

Alarm output: 1 set; Relay contact point capacity:24V DC,0.2A

Analog output: 1 set,4-20mA/0-20mA/0-1V/0-5V/0-10V/1-5V,(You can set the mode freely). The load:less than 500 Ω

Sample flow rate: 3~5L/min

Sample gas pressure: atmospheric conditions±10% (Gas outlet should be atmospheric conditions)

Inlet and outlet: Gas interface:1/4-inch NPT internal thread, stainless steel material (standard 1/4-6 card-plastic joint)

Sensor life: more than 2 years (normal use)

Instrument life: more than 5 years (normal use)

Measuring method: wall-mounted

L×W×H=300×200×175mm; Flow meter:Selection
