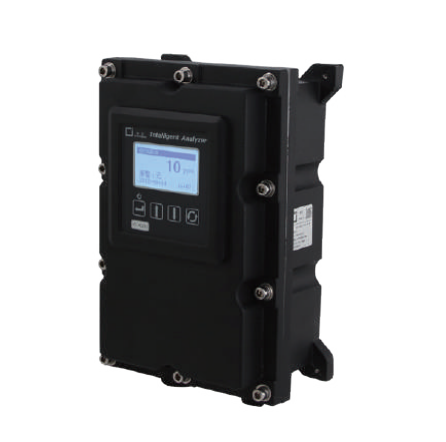

Chang AI CI-PC25 ເຄື່ອງວິເຄາະອາຍແກັສອິນຟາເລດປ້ອງກັນການລະເບີດ (100% CO2, 100% CO, 100% CH4)
Detection principle: NDIR,Non-dispersive Infrared (Double Beam) Measurement
Measurement range:
Measuring Component: Minimum range / Maximum range
CO: 0~5000ppm / 0~100%
CO2: 0~2000ppm / 0~100%
CH4: 0~3% / 0~100%
Accuracy: ±2% FS
Repeatability: ±1% FS
Zero drift: ±1% FS/7d
Range drift: ±1% FS/7d
Response time: T90<15s(500ml/min)
Protection level: IP64
Calibration cycle: One year (recommendation)
Power supply: 24VDC
Power waste: Less than 15VA
Communication: RS485(Standard)/RS232(Optional)
Environmental temperature: -10~45°C; Environmental humidity: less than 90% RH
Sample flow rate: 500~1000ml/min(optimum 500ml/min)
Sample pressure: Atmospheric pressure ±10% (outlet should be atmospheric pressure)
Alarm: Alarm value:1
Analog output signal: Relay Contact Capacity:24VDC, 0.2A. Group 1,4-20mA/0-20mA/0-1V/0-5V/0-10V/1-5V,freely set mode. Load:less than 500Ω
Sensor life: More than 2 years (normal use)
Instrument life: More than 5 years (normal use)
L×W×H=300×200×175mm; Flowmeter: Selection
