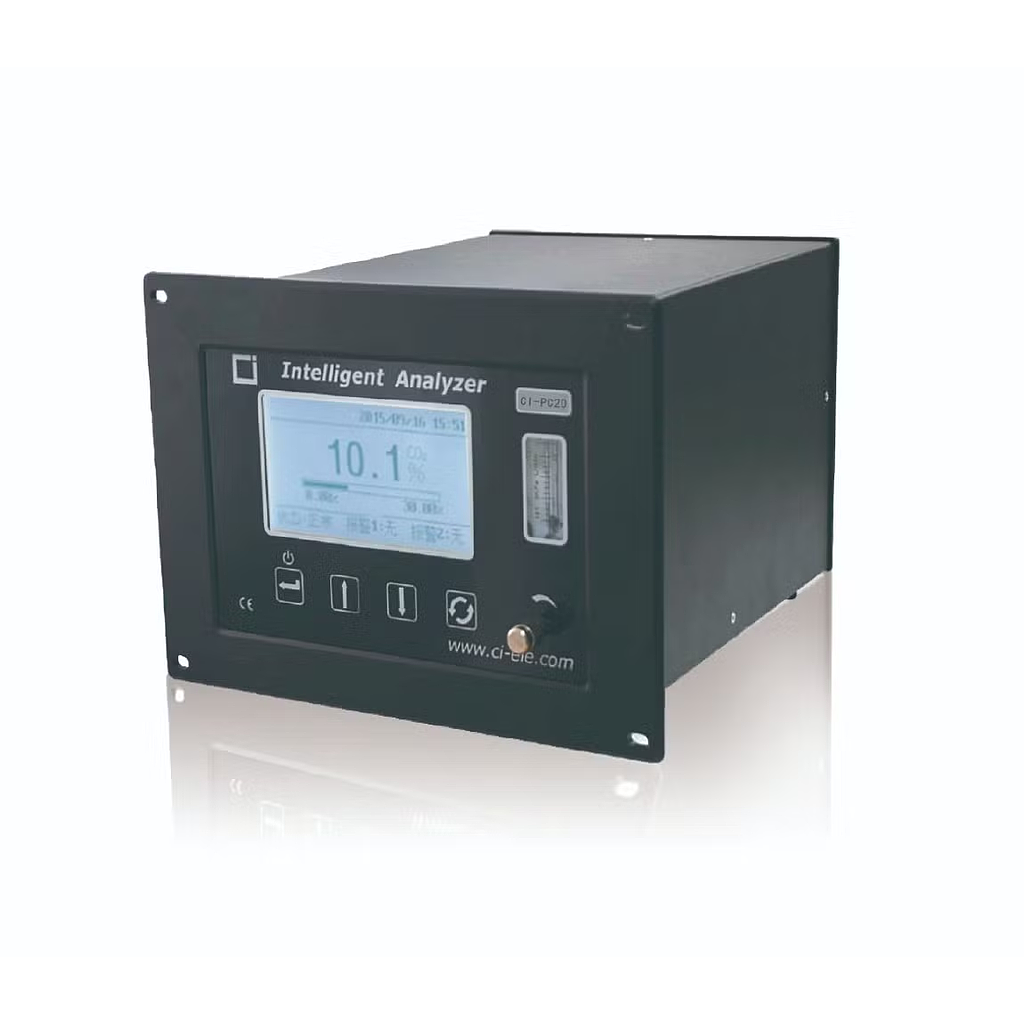

Chang AI CI-PC20 ເຄື່ອງວິເຄາະອາຍແກັສອິນຟາເລດ

Detection principle: NDIR,Non-dispersive Infrared (Double Beam) Measurement

Accuracy: ±2%FS

Repeatability: ±1%FS

Zero drift: ±1%FS/7d

Range drift: ±1%FS/7d

Response time: T90＜15s（500ml/min）

Power supply: 85～264VAC，50/60Hz

Power consumption of analyzer:  Less than 35VA

Communication:  RS485(Standard Matching)/RS232(Optional Matching)

Alarm: Alarm value: 2; Relay Contact Capacity: 24V DC, 0.2A

Analog output signal: Group 1,4-20mA/0-20mA/0-1V/0-5V/0-10V/1-5V,freely set mode. Load: less than 500Ω

External control:  Quantity:5 groups Control signal:9-28VDC

Environmental temperature: -10 ~+45 ℃; Environmental Humidity:Less than 80% RH

Sample pressure: Atmospheric pressure + 10% (outlet should be atmospheric pressure)

Cabinet size:  L*W*H=310mm*275mm*190mm

Installation dimensions: LxW=225mmx180mm (rectangular hole)

Fixed hole size: L*W=252mm*170mm (6*4 bolt hole)
