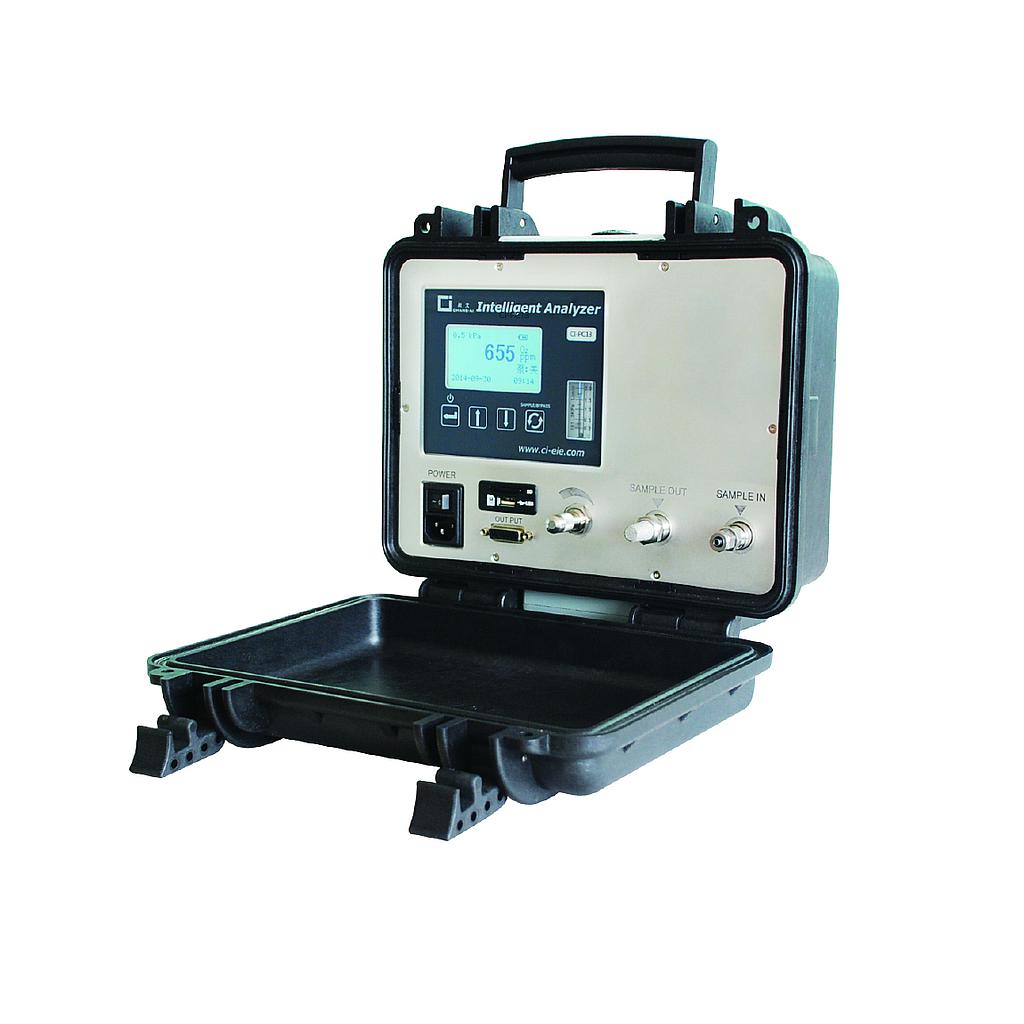

Chang AI CI-PC13 ເຄື່ອງວິເຄາະອົກຊີເຈນແບບພົກພາ (0~25.00% O2)

Measure range: 0~25.00% O2

Sensor: frequency conversion ion flow oxygen senso

Accuracy:

0.01~99.9 ppm:±5ppm

100~999.9ppm:±3%FS

1000~9999 ppm:±3%FS

1.00%~25.00%:±3% of the measured value

Repeatability:

0.01~99.9 ppm:±2.5ppm

100~999.9ppm:±1.5%FS

1000~9999 ppm:±1.5%FS

1.00%~25.00%:±1.5% of the measured value

Stability:

0.01~99.9 ppm:±2.5ppm/7d

100~999.9ppm:±1.5%FS/7d

1000~9999 ppm:±1.5%FS/7d

1.00%~25.00%:±1.5% of the measured value/7d

Response time: T90<20s (after full preheating)

Power supply:  85~264VAC,50/60Hz

Power consumption of analyzer: less than 25VA

Communication: RS232(standard)/RS485(optional)

Signal output: 22 sets, Relay contact point capacity:24V DC,0.2A

Analog output: 1 set,4-20mA/0-20mA/0-1V/0-5V/0-10V/1-5V (You can set the mode freely).

The load: less than 500 Ω

External control:  1 set Control signal:9-28VDC

Environment temperature: -10~45°C Environment Humidity:<80%RH

Sample gas pressure: atmospheric conditions±10% (Gas outlet should be atmospheric conditions)

Weight: 4.5kg net
