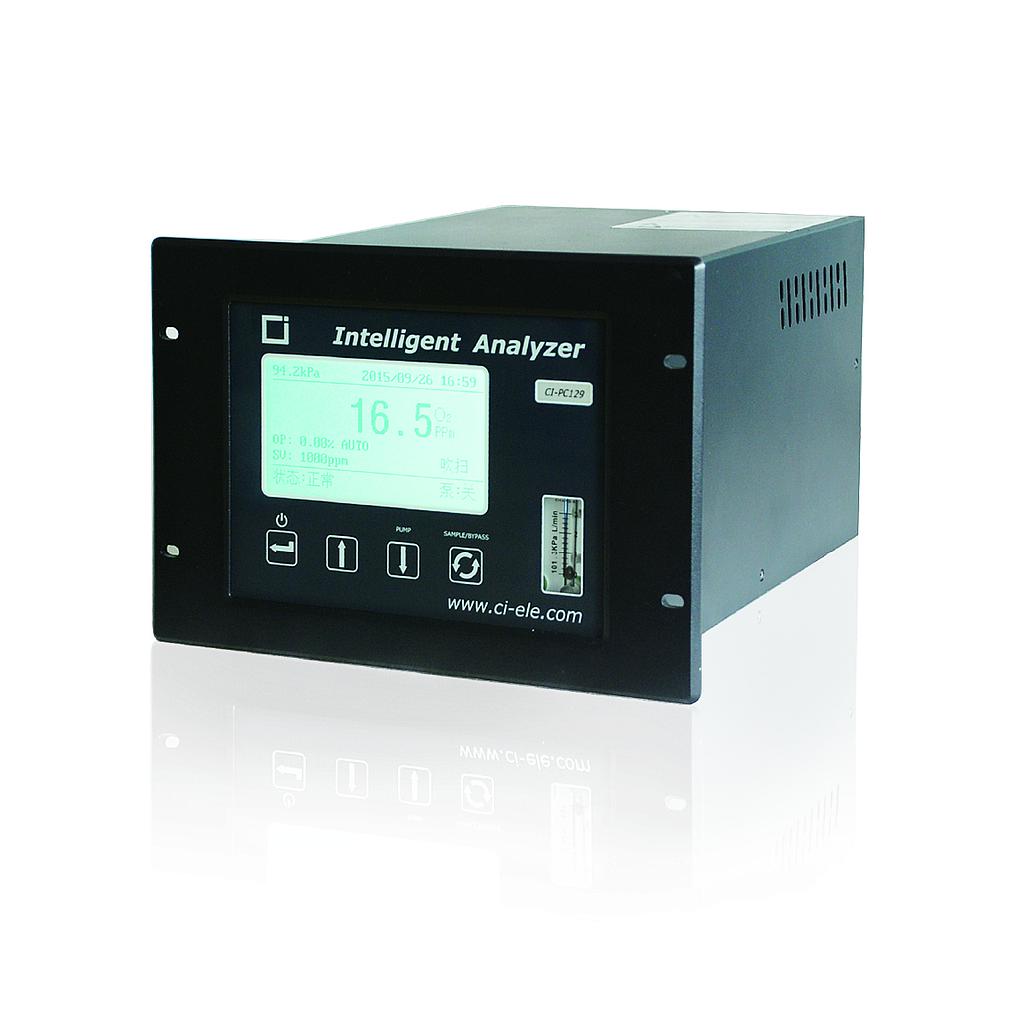

Chang AI CI-PC129 Trace Oxygen Analyzer (0~10/100/1000ppm/1%/25.00% O2)

Measure range: 0~10/100/1000ppm/1%/25.00% O2

Accuracy:

0.01~9.99ppm O2:±5% FS

10.0~99.9ppm O2:±3% FS

100~1000ppm O2:±2% FS

Repeatability:

0.01~9.99ppm O2:±2.5% FS

10.0~99.9ppm O2:±1.5% FS

100~1000ppm O2:±1% FS

Stability:

0.01~9.99ppm O2:±2.5% FS/7d

10.0~99.9ppm O2:±1.5% FS/7d

100~1000ppm O2:±1% FS/7d

Response time: T90<60s(25°C)

Sensor: Fuel cell oxygen sensor

Power supply: 85~264VAC,50/60Hz

Environment temperature: -10~50°C,Environment Humidity:<80%RH

Communication: RS485(standard)/RS232(optional)

Switch output: 2 sets,(One group of state alarm and one group of concentration alarm)

Relay contact point capacity: 24V DC,0.2A

Analog output: 1 set,4-20mA/0-20mA/0-1V/0-5V/0-10V/1-5V (You can set the mode freely).

The load: less than 500 Ω

External control: 1 set, control signal 9~28VDC

Sample gas pressure: atmospheric conditions±10% (Gas outlet should be atmospheric conditions)

Sample flow rate: 1.5~2L/min

Analyzer size: L×W×H=310mm×275mm×190mm
