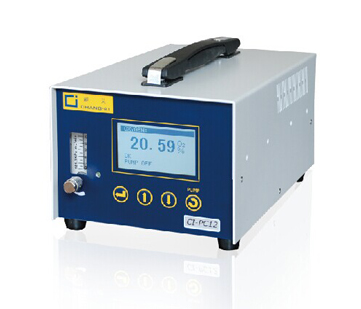

Chang AI CI-PC12 ເຄື່ອງວິເຄາະອົກຊີເຈນຂອງ Ion Flow ການແປງຄວາມຖີ່ (0~25% O2)

Measuring Range: 0~25.00% O2

Response Time:

0.01~99.9 ppm: ±5ppm

100~999.9ppm: ±3%FS

1000~9999 ppm:±3%FS

1.00%~25.00%:measured ±3%

Sensor Principle:

0.01~99.9 ppm ±2.5ppm

100~999.9ppm: ±1.5%FS

1000~9999 ppm:±1.5%FS

1.00%~25.00%: measured ±1.5%

Stability:

0.01~99.9 ppm ±2.5ppm/7d

100~999.9ppm: ±1.5%FS/7d

1000~9999ppm: ±1.5%FS/7d

1.00%~25.00%: measured±1.5%/7d

Response Time: T90<20s(Fully heated)

Sensor Principle: frequency conversion ion flow

Relay Contact Capacity: 24VDC,0.2A

Power Supply: 85~264VAC,50/60Hz

Communication: RS232(Standard)/RS485(Optional)

Ambient Temperature: -10~50°C environmental humidity:less than 80%RH

Sample Pressure: pressure±10% (Outlet should be atmospheric pressure)

Analyzer Size: L×W×H=290mm×167mm×119mm

Analyzer Weight: self-weight 3kg
