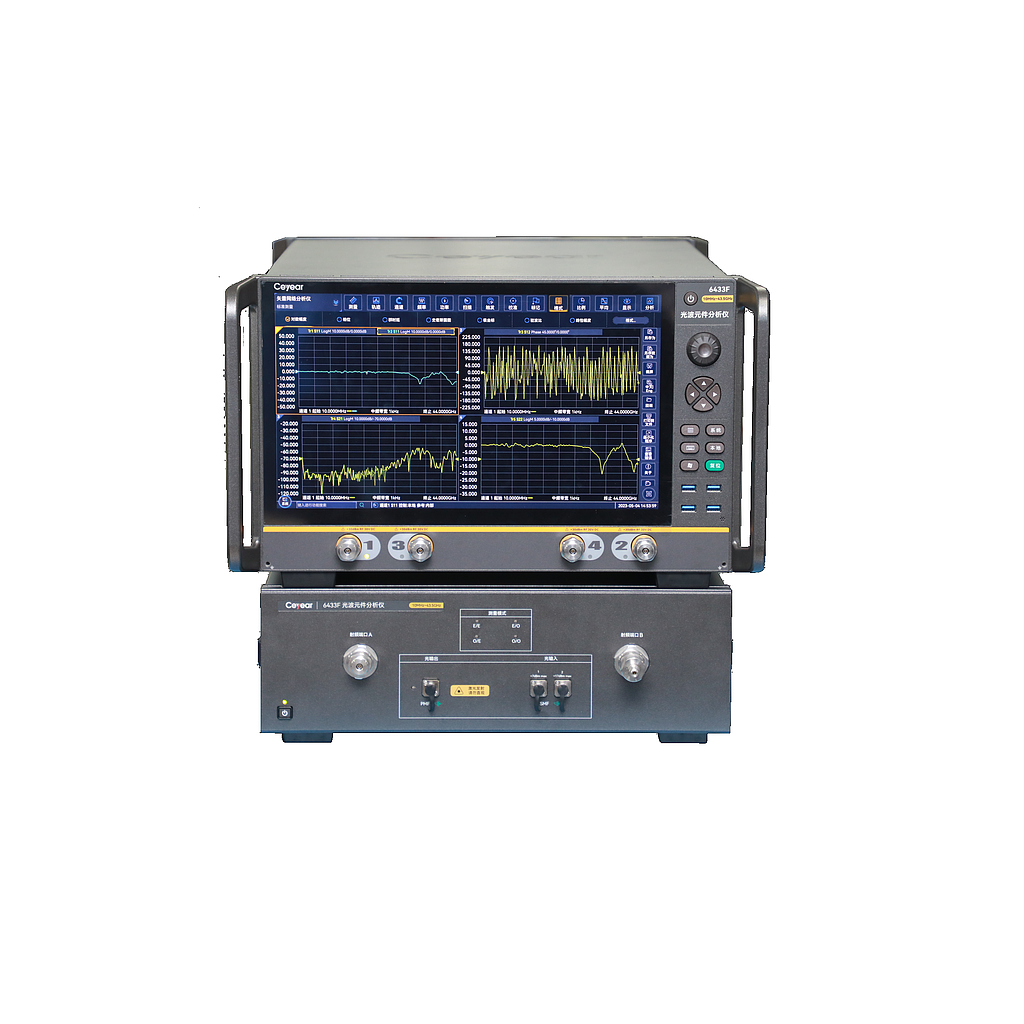

Ceyear 6433H ເຄື່ອງວິເຄາະອົງປະກອບຂອງ Lightwave (10MHz – 50GHz)
Modulation Frequency Range: 10MH z ～ 50 GHz
Frequency Accuracy: ±1×10^ -7
Frequency Resolution: 1 Hz
Working Wavelength: 1310±20nm . 1550±20nm
Average Output Optical Power range: -2dBm~+4dBm ( 1310nm ); -2dBm~+5dBm ( 1550nm )
Maximum Safe Average Input Power: Input 1 : +7dBm / Input 2 : +17dBm
Average Output Optical Power Accuracy ±0.5dB
Average Input Optical Power Measurement Range: -35dBm~+5dBm (optical input 1 ) /-25dBm~+15dBm ( optical input 2 )
Minimum Measurable Frequency Response: -60 dB
Average Input Optical Power Measurement Accuracy: ± 0.5 dB
Relative Frequency Response Accuracy: ± 1.6 dB
Absolute Frequency Response Accuracy: ± 2.5 dB
Frequency Response Repeatability: ± 1.7 dB
Group Delay Measurement Accuracy: ± 18 ps
Phase Measurement Accuracy :± 4.2 º
Maximum Weight: 60 kg
Dimensions: Width high depth = 421mm × 400mm × 600mm
Maximum Power Consumption: 600 W
