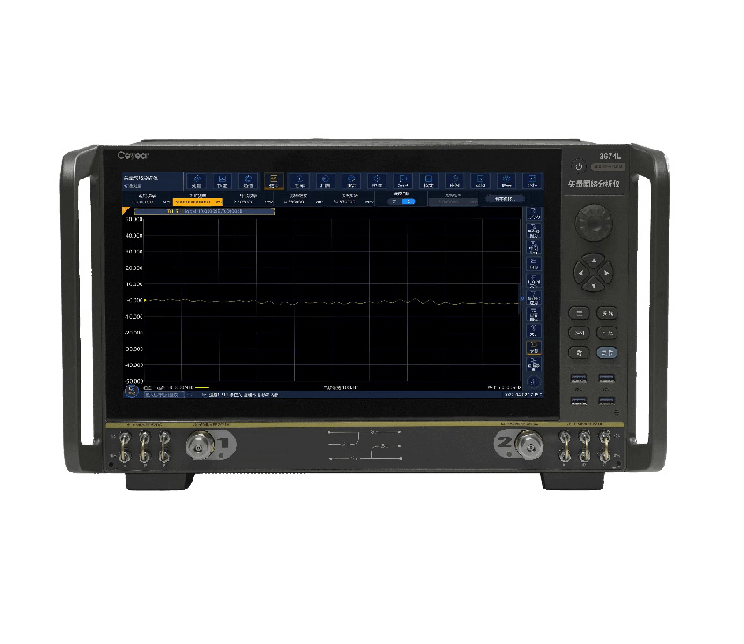

Ceyear 3674L Vector Network Analyzer (10MHz – 67GHz)
ຜູ້ຜະລິດ: Ceyear Model: 3674L - ຕິດຕໍ່ພົວພັນ
Frequency Range : 10MHz – 67GHz
Frequency Resolution: 0.1Hz
Harmonic Suppression:
Port 1,3: -71dBc ~ -48dBc
Port 2,4: -72 dBc ~ -13 dBc
Power Range: 43dB (10 ~14 GHz)
Power Accuracy: ±1.0dB@10GHz
Dynamic Range: 131dB@10GHz
Effective Directivity: 41dB@10GHz
Effective Source Match: 36dB@10GHz
Effective Load Match: 40dB@10GHz
Reflection Tracking: ±0.0110dB@10GHz
Transmission Tracking: ±0.065dB@10GHz
Connector Type: 1.85mm (male)
Dimension
• 2-port: 475 (W) x 279 (H) x 560 (D) mm
• 4-port: 475 (W) x 279 (H) x 660 (D) mm
See more detail information in the Datasheet
