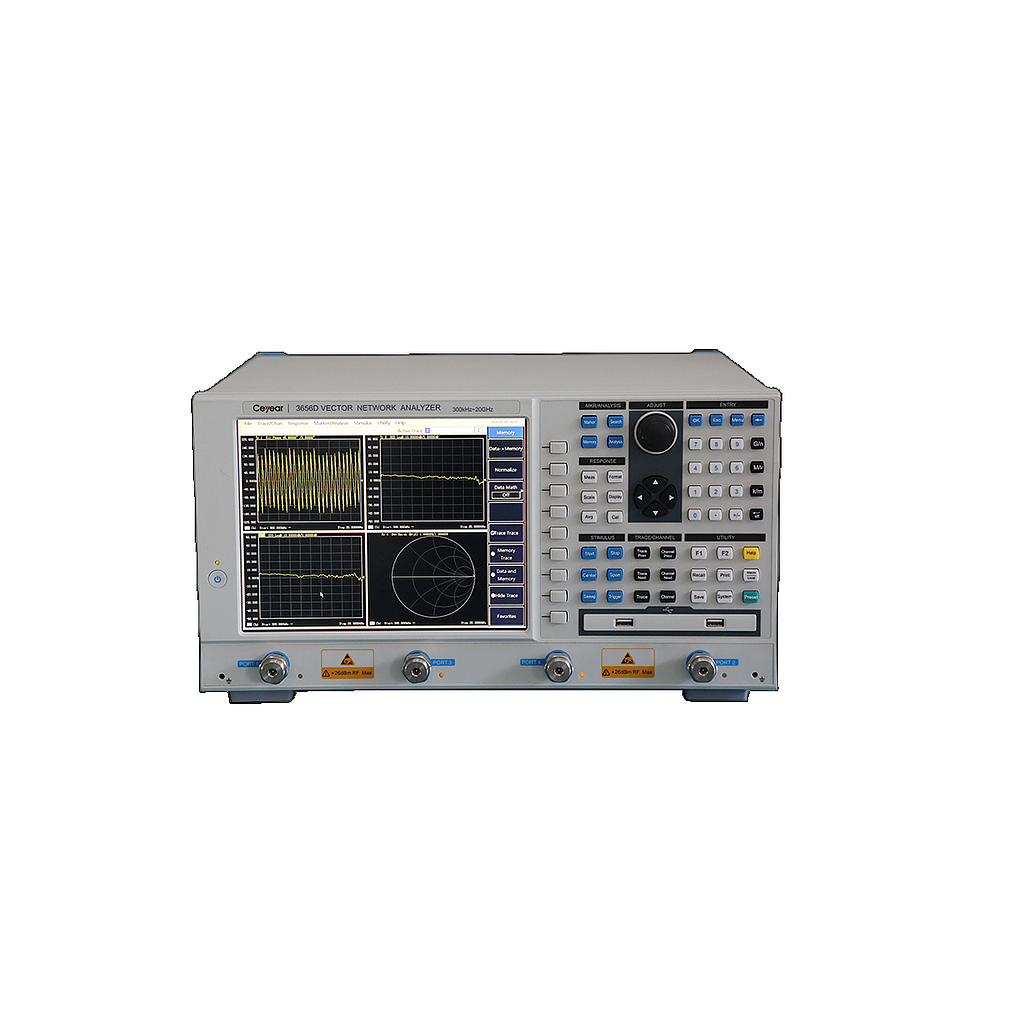

Ceyear 3656D Vector Network Analyzer (300 kHz ~ 20 GHz)
Frequency Range: 300 kHz ~ 20 GHz
Frequency Resolution: 1 Hz
Frequency Accuracy : ±1×10^-6 (23°C ± 3°C)
Dynamic Range: Up to 120dB
IF Bandwidth: 1MHz – 5MHz
Number of Built-In Ports: 2-port (standard), 4-port (option)
Measurement Point : 1 – 16001
Number of Measurement Receiver: 2 / 4
Reference Level Amplitude Setting
• Range: ± 500dB
• Resolution: 0.001dB
Reference Phase Setting
• Range: ± 500°
• Resolution: 0.01°
Time-base Reference Output
• Output frequency: 10MHz
• Output level: +10dBm ± 4dB
Measurement Fields: Frequency domain and Time domain
Display Format: Logarithmic amplitude, linear range, standing wave, phase, group delay, smith chart, polar diagram
Power Supply: 50 Hz 220 V AC / 60 Hz 110 V AC
Power Consumption : 150 W
Display: 10.4-inch high brightness LCD
Dimension: 435 (W) × 236.5 (H) × 410 (D) mm
Weight: 18 kg
See more detail information in the Datasheet
