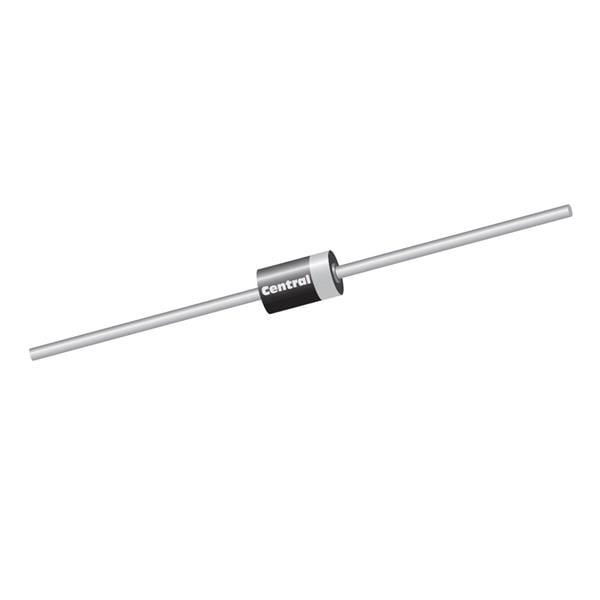

Central Semiconductor 1N4732A BK TIN/LEAD ເຊນເດີ ໄດໂອດ 4.7Vz 8.0Ohm 500Ohm 1.0mA 10uA 1.0Vr

Unit Weight: 310 mg

Test Current: 53 mA

Configuration: Single

Zener Current: 970 mA

Mounting Style: Through Hole

Voltage Tolerance: 5 %

Vz - Zener Voltage: 4.7 V

If - Forward Current: 200 mA

Ir - Reverse Current: 10 uA

Vf - Forward Voltage: 1.2 V

Zz - Zener Impedance: 8 Ohms

Pd - Power Dissipation: 1 W

Maximum Operating Temperature: + 200 C

Minimum Operating Temperature: - 65 C

Voltage Temperature Coefficient: - 0.03 %/C to 0.04 %/C

Ir - Maximum Reverse Leakage Current: 10 uA
