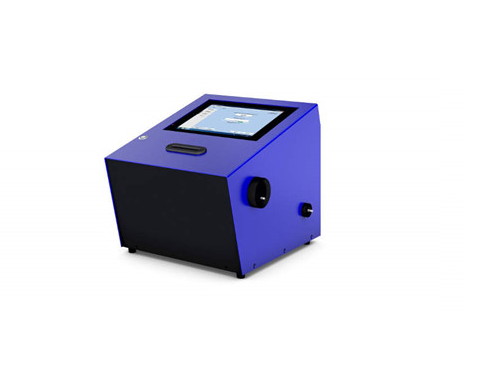

Centec RHOTEC L density sensor

Technical Data

Measuring Range 0 - 3 g/cm3
Accuracy ± 0,0001 g/cm3
Repeatability ± 0,00005 g/cm3
Repeatability Temperature ± 0,02 °C
Sample Volume approx. 2 ml
Measurement Time 30 - 60 s
Temperature of Operation +5 - + 85 °C
Temperature of Environment +10 - + 40 °C
Temperature Sensor Pt1000
Material glass, PTFE
Connections nozzles, PTFE
Display 10“ touchscreen
Interface USB; WLAN; Ethernet
Housing aluminum, powder coated
Weight 22 kg
Power Supply 230 VAC

RHOTEC is a high-precision density sensor for determining densities and concentrations (e.g., of acids, alkalis, emulsions, or solvents). The sensor can be used, for example, for phase detection and monitoring of crystallization processes.
