Dimension(L*W*H): 2065*845*1250mm
PCB size(L*W): 50*50-445*330mm
Magazine size(L*W*H): 460*400*563mm
Quantity of rail: Single rail
No. of magazine: Loader: upper 1, lower 1
Conveyor belt of magazine: Plastic strips
Belt type: 4mm flat belt
Load bearing: 2kg/PCB
Transport height: 900±20mm(or custimzie)
Cycle time: 6 Seconds or specity
Magazine change time: 26 Seconds or specity
Indexing pitch: 10. 20. 30. 40mm selectable
Power supply: AC 110/220V±10V, 50/60HZ
Power: Max 300VA
Air prssure: 4-6bar
Air consumption: 10itr/min max
Screen size: 7 inch
PCB thickness: Minimum 0.6mm thickness
Transport direction: L-R or R-L
CE: Yes
PLC: Yes
SMEMA: Yes
Weight: 220kg

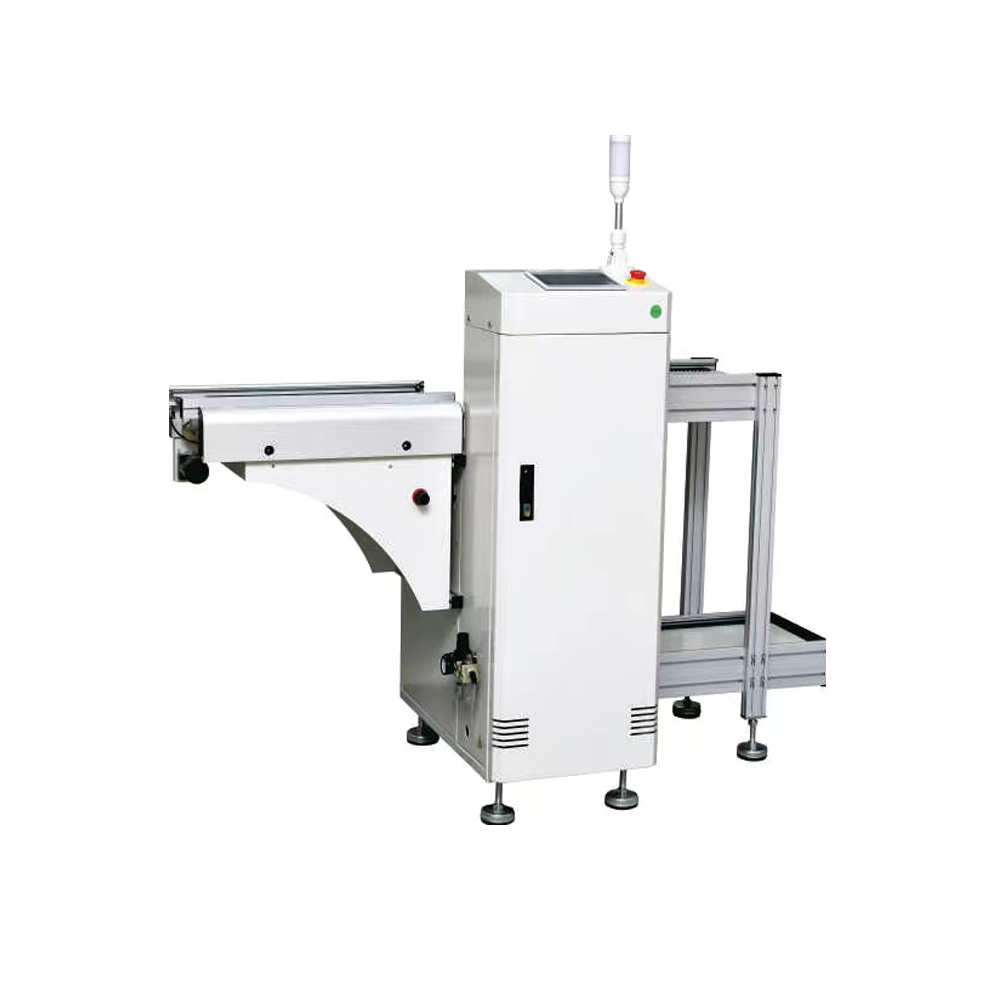

This equipment is used for PCB board unloading operation in SMT production line.
Features
1.Strong, firm and stable design
2.User friendly'soft touch' LED membrance control panel
3.Top & bottom pneumatic clamps to secure magazine rack
4.No PCB breakage guaranty because of special gas circuit design
5.Automatical diagnosing fault code display function
6.Wear-resista nt cable and have long service life
7.SMEMA compatible
