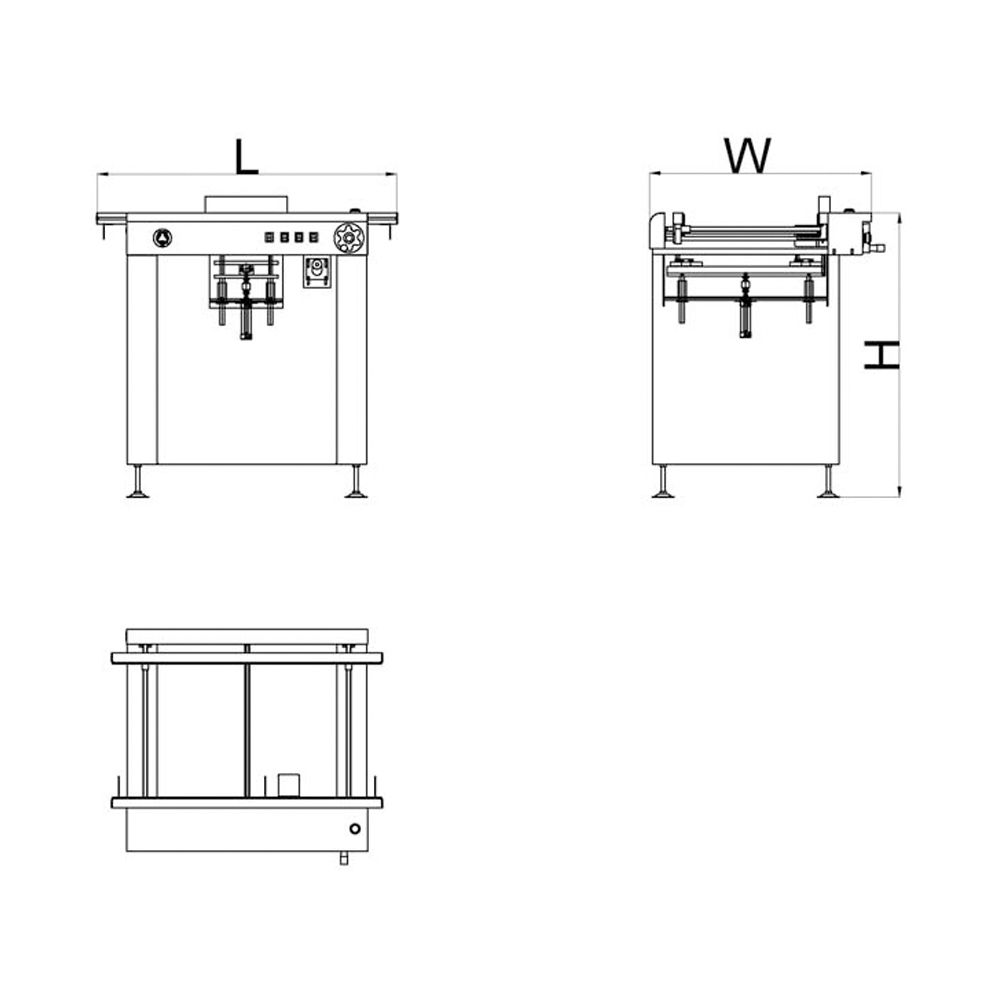

Dimension(L*W*H): 500*793*900mm
PCB size(L*W): 50*50-460*460mm
Number of stocks: 10pcs or specify(Pitch 25mm)
Quantity of rail: Single rail
Belt type: 4mm flat belt
Load bearing: 2kg/PCB
Transport height: 900±20mm(or custimzie)
Convey speed: 0.5-20m/min or specify
Power supply: AC 220V±10V, 50/60HZ
Power: Max 100VA
Air consumption: 10itr/min max
PCB thickness : Minimum 0.6mm
Transport direction: L-R or R-L
CE: Yes
PLC: Yes
SMEMA: Yes
Weight: 70kg

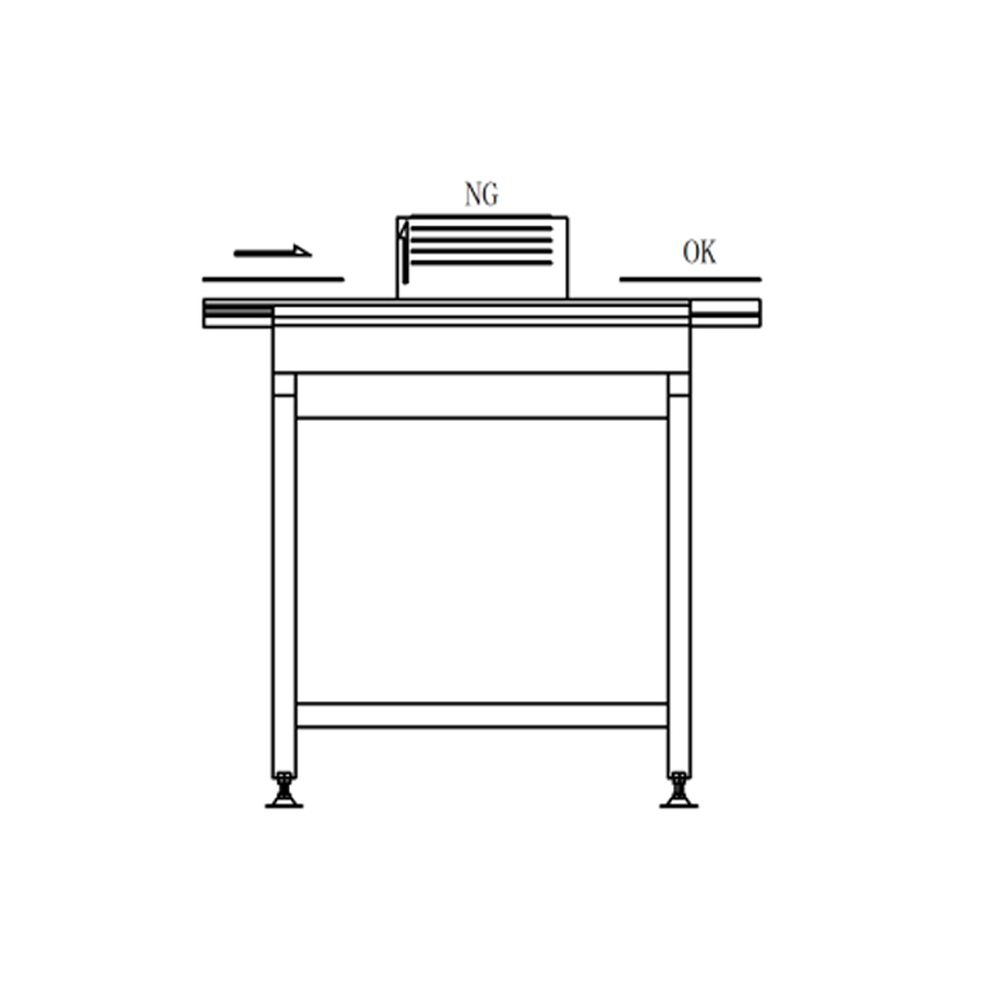

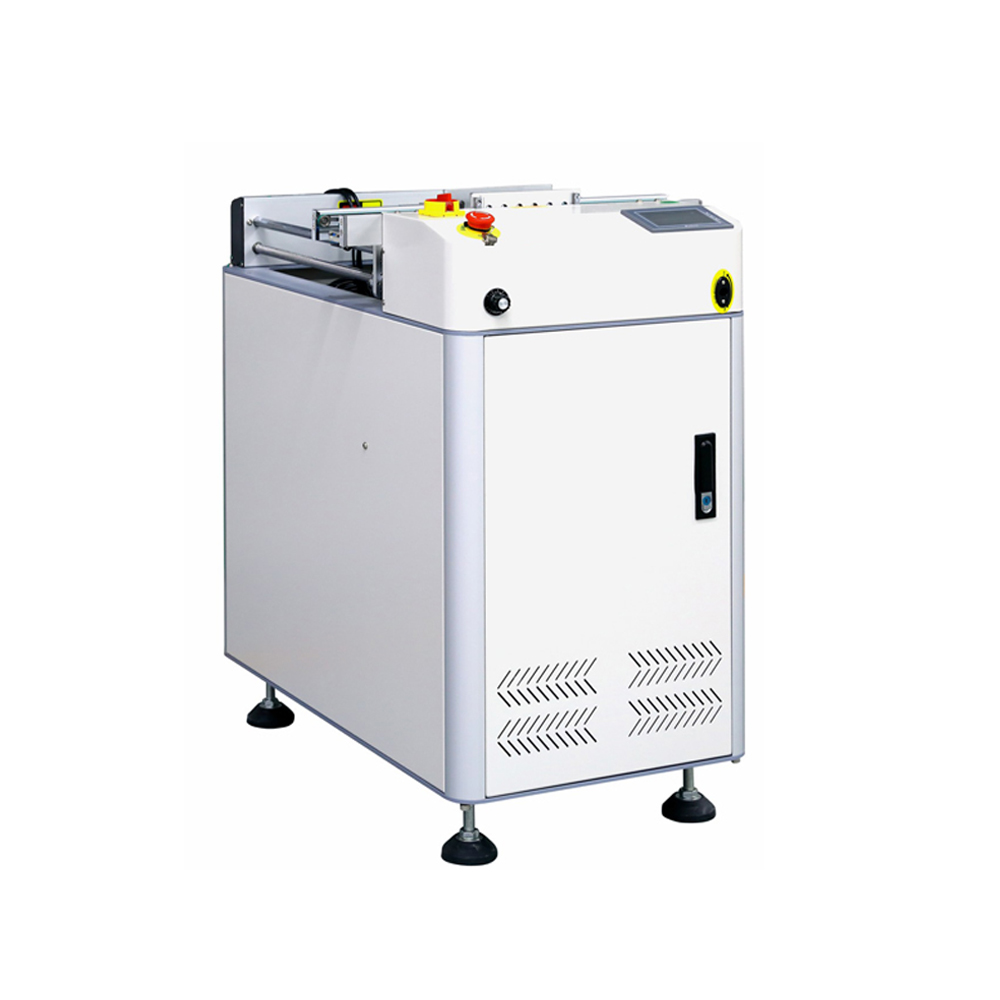

This equipment is used for AOI to separate the good board and the bad board. During the inspection, the good board can continue to run without hindrance.
Features
1.Reject,inspect and pass through modes provided.
2.PLC controller.
3.Stability enhanced by robust design.
4.Smooth and parallel width adjustment.
5.Length can be customized.
6.Speed is adjustable.
7.SMEMA compatible.
Note: Single or dual rails are customized.
