Dimension(L*W*H):500*1350*1050mm
PCB size(L*W):50*50-460*350mm
Quantity of rail:Single rail
Belt type:4mm flat belt
Load bearing:2kg/PCB
Convey speed:0.5-20m/min or specify
Transport height:900±20mm(or custimzie)
Cycle time:Depends on traversing distance
Power supply:AC 220V±10V, 50/60HZ
Power:Max 250VA
Screen size:7 inch
PCB thickness :Minimum 0.4mm
Transport direction:L-R or R-L
CE: Yes
PLC:Yes
SMEMA:Yes

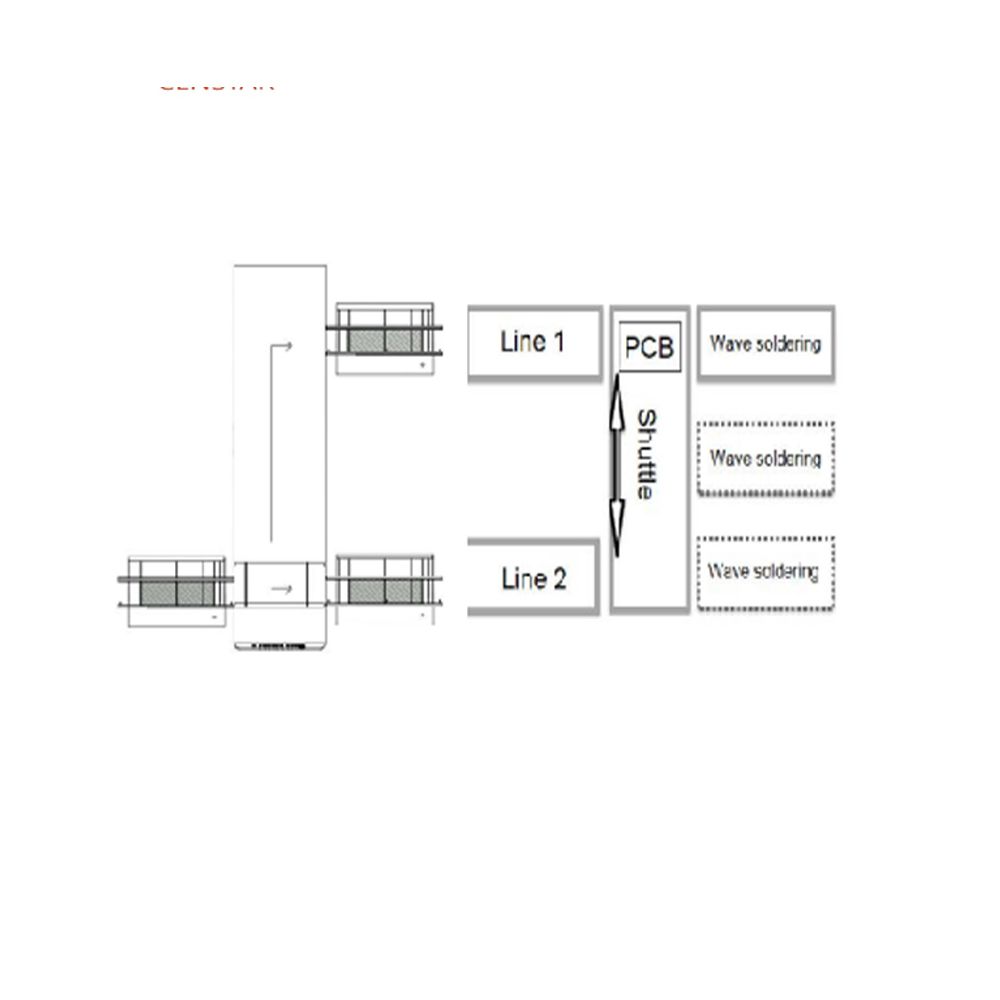

This equipment is used to adjust the running direction of the circuit board on the production line to different paths.
Features
1.PLC+LED touch screen control, easy to operate.
2.Full closed design ensures safety level of operation.
3.The cover can be opened to facilitate machine maintenance.
4.Smooth and precise width adjustment (leadscrew).
5.Smooth and accurate movement (stepping motor).
6.Minimize the transmission gap between conveyors.
7.With SMEMA signal.
