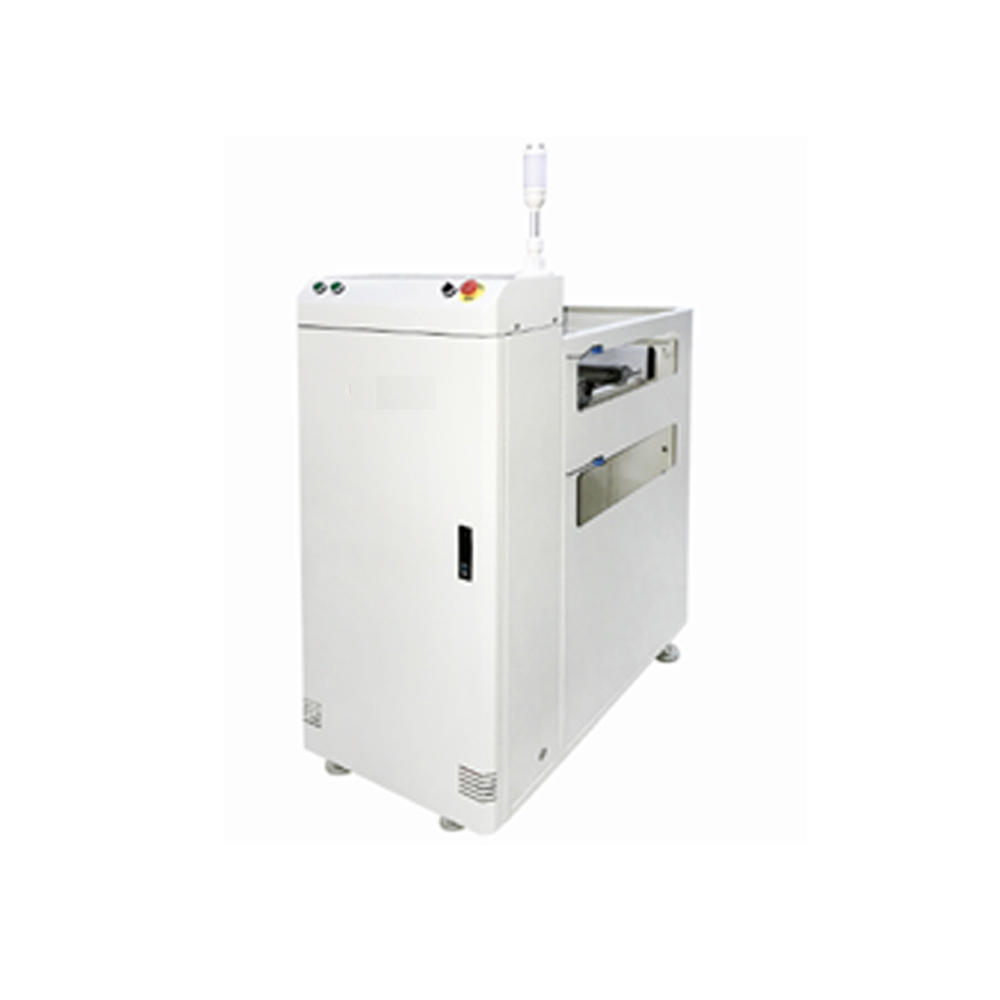

Censtar PD-XL-BN ລໍາລຽງຍົກ PCB (610*1050*Hmm, 50*50-530*460mm)

Dimension(L*W*H): 610*1050*Hmm

PCB size(L*W): 50*50-530*460mm

Quantity of rail: Single rail

Belt type: Nylon embroidered steel chain or oblate belt

Load bearing: 3kg/PCB

Cycle time: Depends on lifting distance

Transport height: Custimzie

Power supply: AC 220V±10V, 50/60HZ

Power: Max 250VA

Screen size: 7 inch

PCB thickness : Minimum 0.4mm

Transport direction: L-R or R-L

CE: Yes

PLC: Yes

SMEMA: Yes

Weight: 200kg

This equipment is used to adjust the height direction of the PCB board on the production line to different paths.

1.Enclosed design,safety enough;

2.Can rise and fall, machine height can be customized;

3.Top cover can be opened, it's easy to make maintenance;

4.Smooth and parallel width adjustment (leadscrew);

5.Speed can adjust;

6.Minimize transmission clearance between conveyor;

7.With SMEMA signal.
