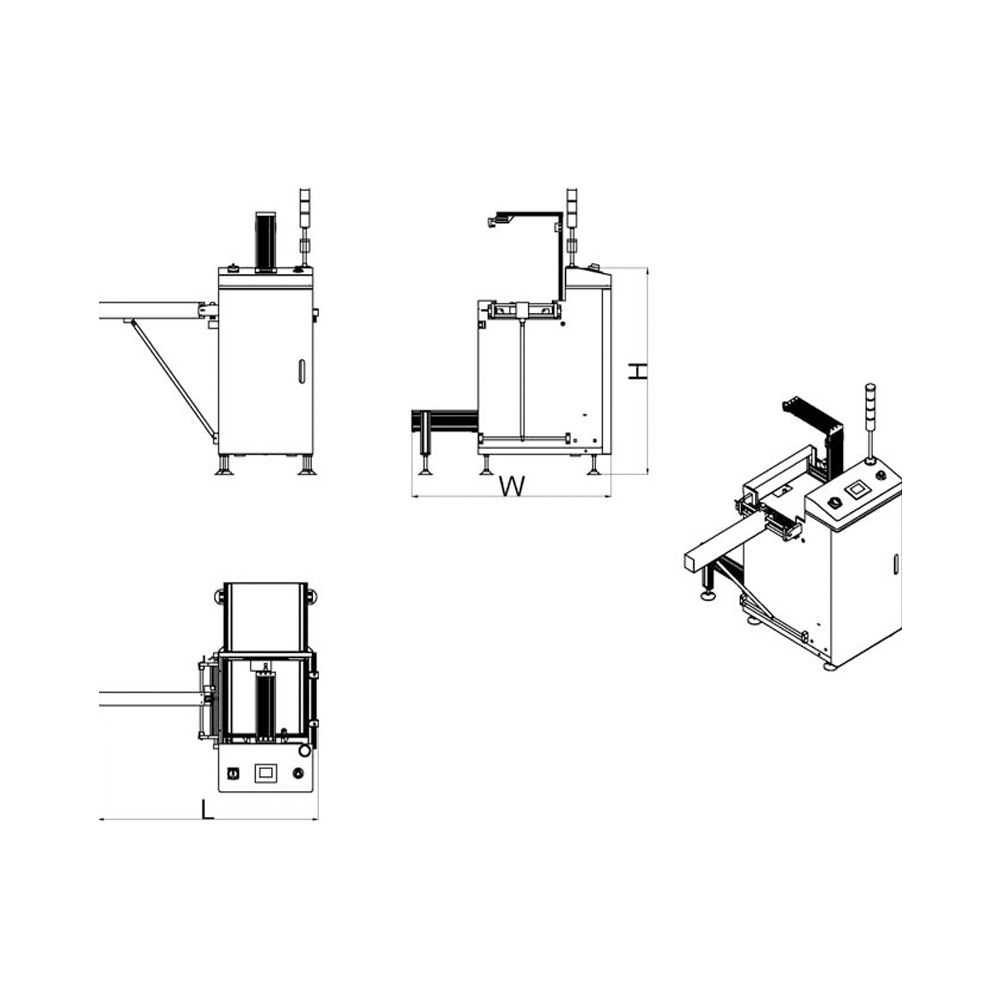

Dimension(L*W*H): 1550*1550*1205mm
PCB size(L*W): 50*50-530*390mm
Magazine size(L*W*H): 535*460*563mm
Quantity of rail: Single rail
No. of magazine: Loader: upper 1, lower 2
Conveyor belt of magazine: Plastic strips
Transport height: 900±20mm(or custimzie)
Cycle time: 6 Seconds or specity
Magazine change time: 30 Seconds or specity
Indexing pitch: 10. 20. 30. 40mm selectable
Power supply: AC 220V±10V, 50/60HZ
Power: Max 300VA
Air prssure: 4-6bar
Air consumption: 10itr/min max
Screen size: 7 inch
PCB thickness : Minimum 0.6mm thickness
Transport direction: L-R or R-L
CE : Yes
PLC: Yes
SMEMA: Yes
Weight: 280kg

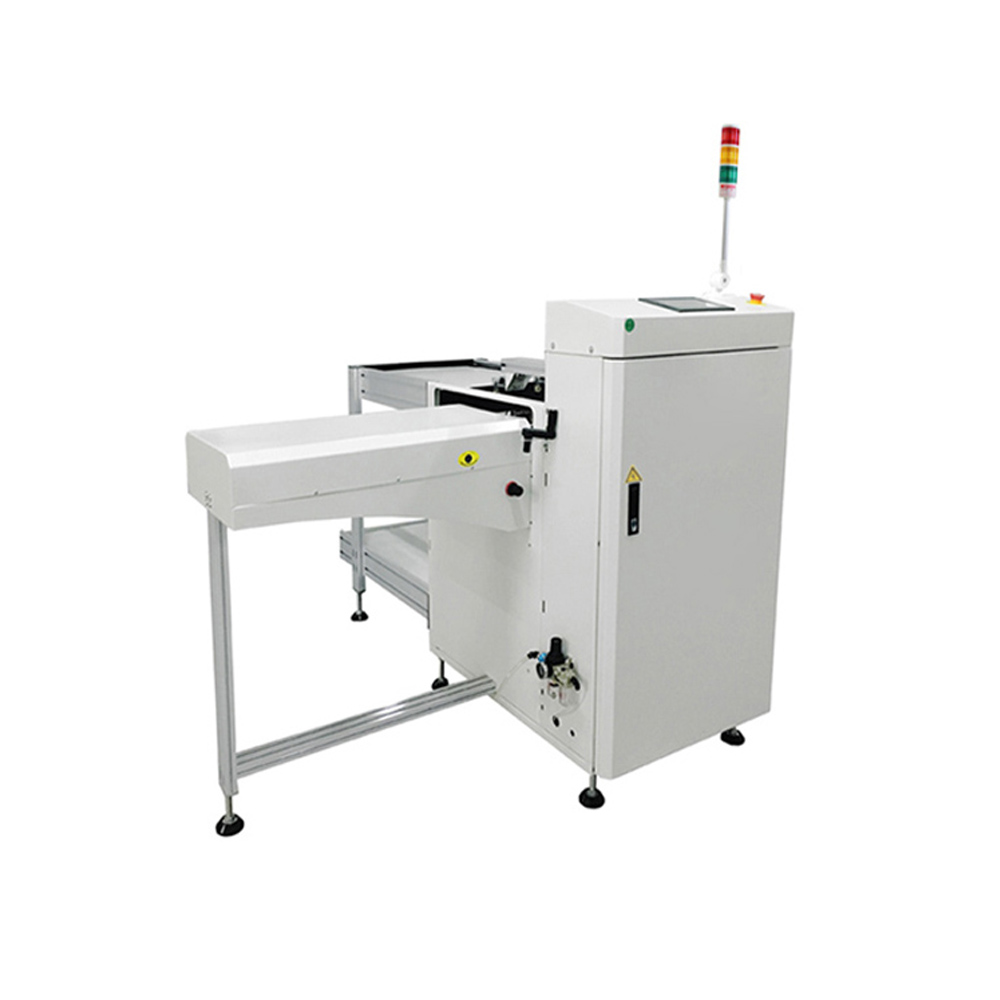

This equipment is used for PCB board loading operation in SMT production line .
Features
1.User friendly ""soft touch"" LED membrance control panel or touch screen is optional.
2.Strong ,firm and stable design.
3.Up&down pneumatic clamps to ensure the magazine rack position.
4.Special gas circuit design to ensure no PCB breakage.
5.L shape design, save the whole production line length.
6.With SMEMA signal.
