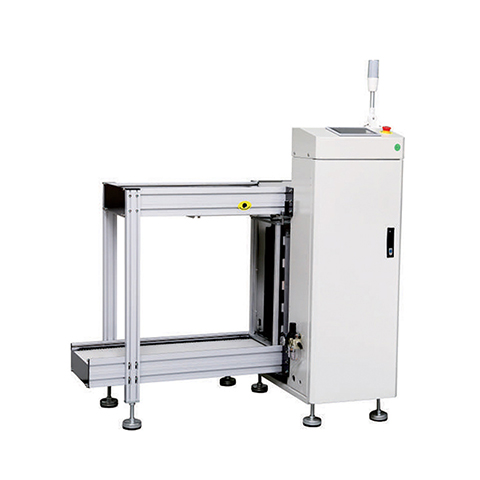

Censtar LD-XXL-BN ເຄື່ອງໂຫລດວາລະສານ PCB (2065*1230*1250mm, 50*50-610*460mm)
Dimension（mm): 2065*1230*1250
PCB size(mm): 50*50-610*460
Magazine size(mm): 630*530*563
Magazine quantity: Up: 1: Down: 2
Time feed PCB: Approx. 6 Seconds or specity
Mazagine change time: Approx. 30 Seconds or specity
Indexing pitch: 10. 20. 30. 40mm selectable
Power supply: AC 220V±10V, 50/60HZ
Power: Max 300VA
Air prssure: 4-6bar
Air consumption: 10itr/min max
Transport height: 900±20mm(or customer specified)
PCB direction: L-R or R-L (optional)
Board thickness : Min. 0.6mm thickness
PCB weight : ≤2KG
Weight: 350kg

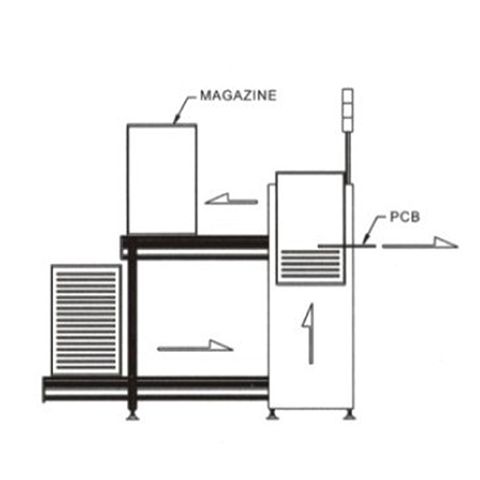

This equipment is used for PCB board loading operation in SMT production line.
Features
1.Strong, firm and stable design
2.User friendly'soft touch' LED membrance control panel
3.Top & bottom pneumatic clamps to secure magazine rack
4.No PCB breakage guaranty because of special gas circuit design
5.Automatical diagnosing fault code display function
6.Wear-resista nt cable and have long service life
7.SMEMA compatible
