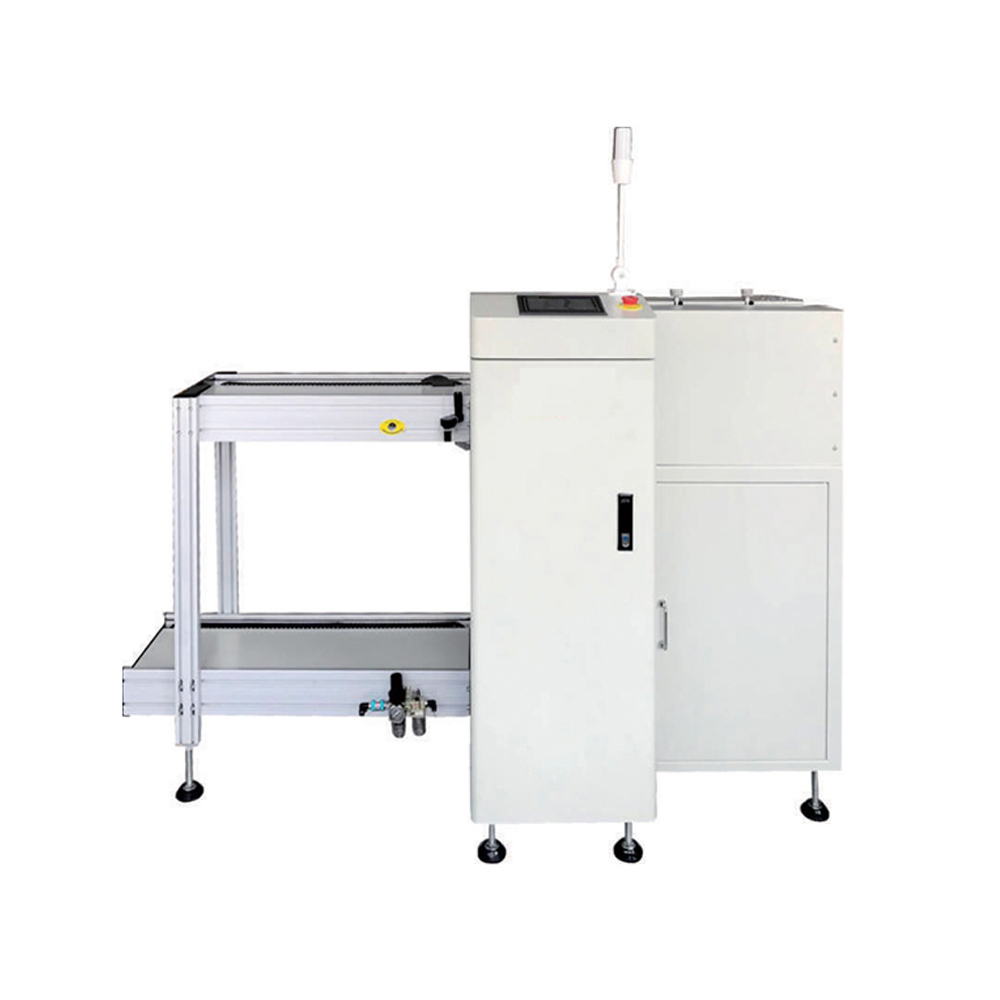

Censtar CL-M-BN ຕົວໂຫຼດຕົວທຳລາຍເຄື່ອງ PCB ອັດຕະໂນມັດ (1850*855*1250mm, 50*50-330*250mm)

Dimension(L*W*H): 1850*855*1250mm

PCB size(L*W): 50*50-330*250mm

Magazine size(L*W): 355*320*563mm

Maximum PCBs capacity: 400pcs(0.6mm thick PCB)

Quantity of rail: Single rail

Belt type: 4mm flat belt

Load bearing: 2kg/PCB

No. of magazine: Loader: upper 1, lower 2

Conveyor belt of magazine: Plastic strips

Transport height: 900±20mm(or custimzie)

Cycle time: 12 Seconds or specity

Indexing pitch: 10. 20. 30. 40mm selectable

Power supply: AC 220V±10V, 50/60HZ

Power: Max 300VA

Air prssure: 4-6bar

Air consumption: 30itr/min max

Screen size: 7 inch

PCB thickness: Minimum 0.6mm thickness

Transport direction: L-R or R-L

CE: Yes

PLC: Yes

SMEMA: Yes

Weight: 190kg

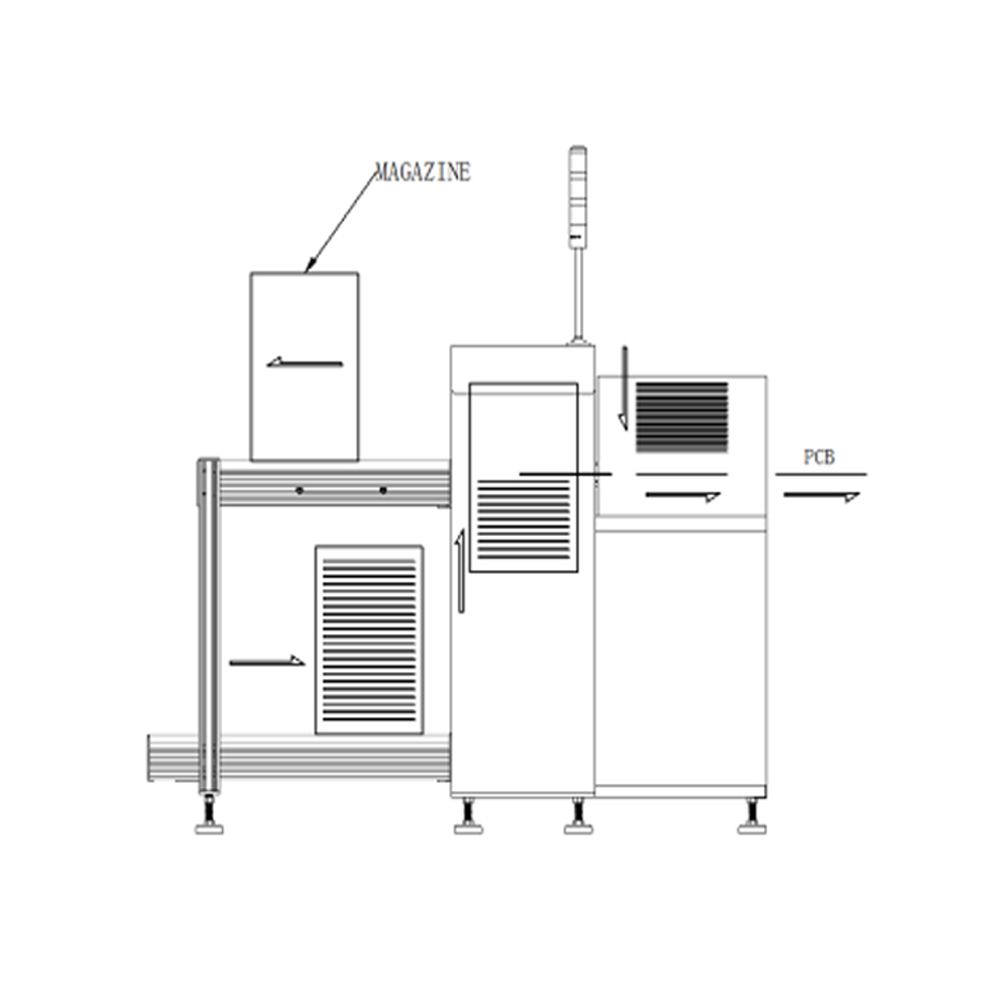

This equipment is used for the automatic loading operation of double-sided PCB boards and PCB bare boards on SMT production lines.

Features

1.User friendly membrane control panel

2.Increase board without interference

3.By pass mode provided

4.Top & bottom pneumatic clamps to secure magazine rack

5.No PCB breakage guaranty because of special gas circut design

6. PCB Stacker Loader and PCB loader compatible，At the same time, it has two functions: bare board and double-sided board loader function

7.SMEMA compatible
