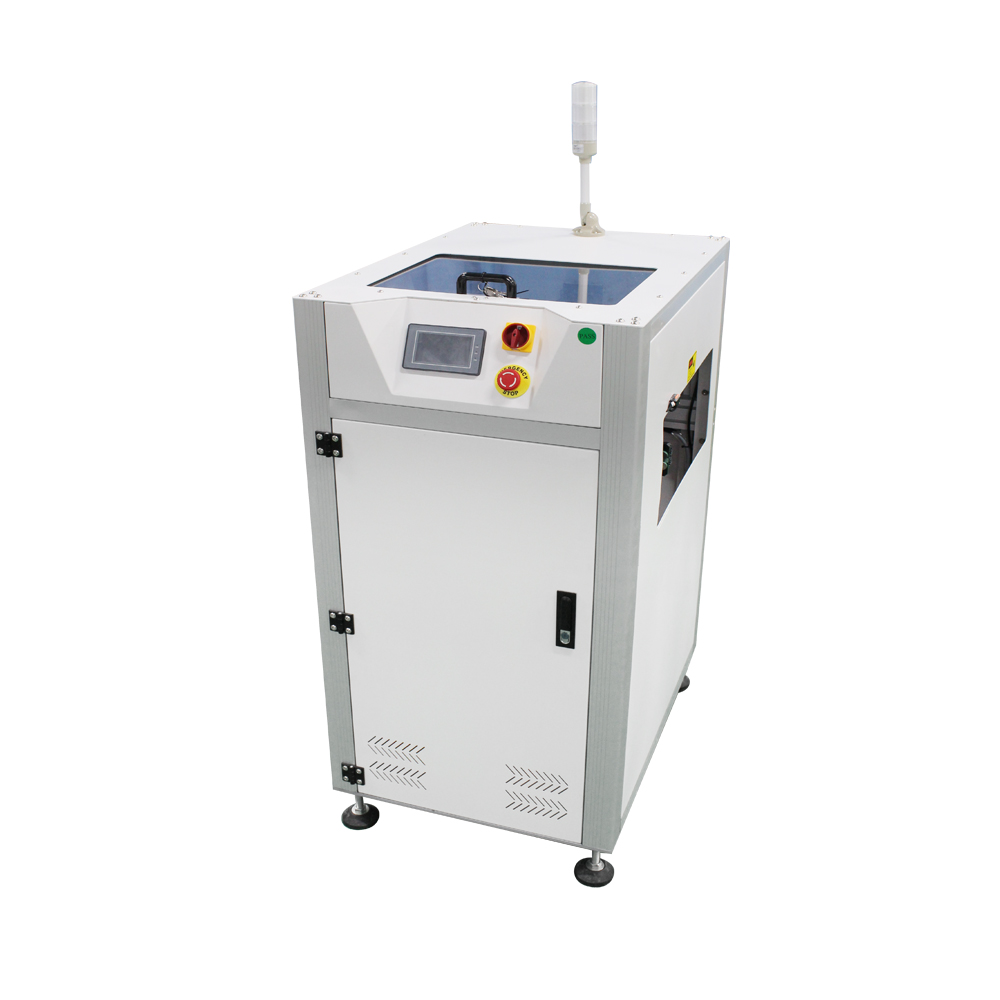

Censtar BI-400W-N ເຄື່ອງລໍາລຽງ PCB Inverter (650*856*1250mm, 50*50-530*460mm)

Dimension(L*W*H): 650*856*1250mm

PCB size(L*W): 50*50-530*460mm

Quantity of rail: Single rail

Belt type: 4mm flat belt

Load bearing: 2kg/PCB

Transport height: 900±20mm(or custimzie)

Cycle time: 10 Seconds or specity

Power supply: AC 220V±10V, 50/60HZ

Power: Max 150VA

Air prssure: 4-6bar

Air consumption: 1.1itr/min max

Screen size : 7 inch

PCB thickness: 0.4-3.5mm

Transport direction: L-R or R-L

CE: Yes

PLC: Yes

SMEMA: Yes

Weight: 160kg

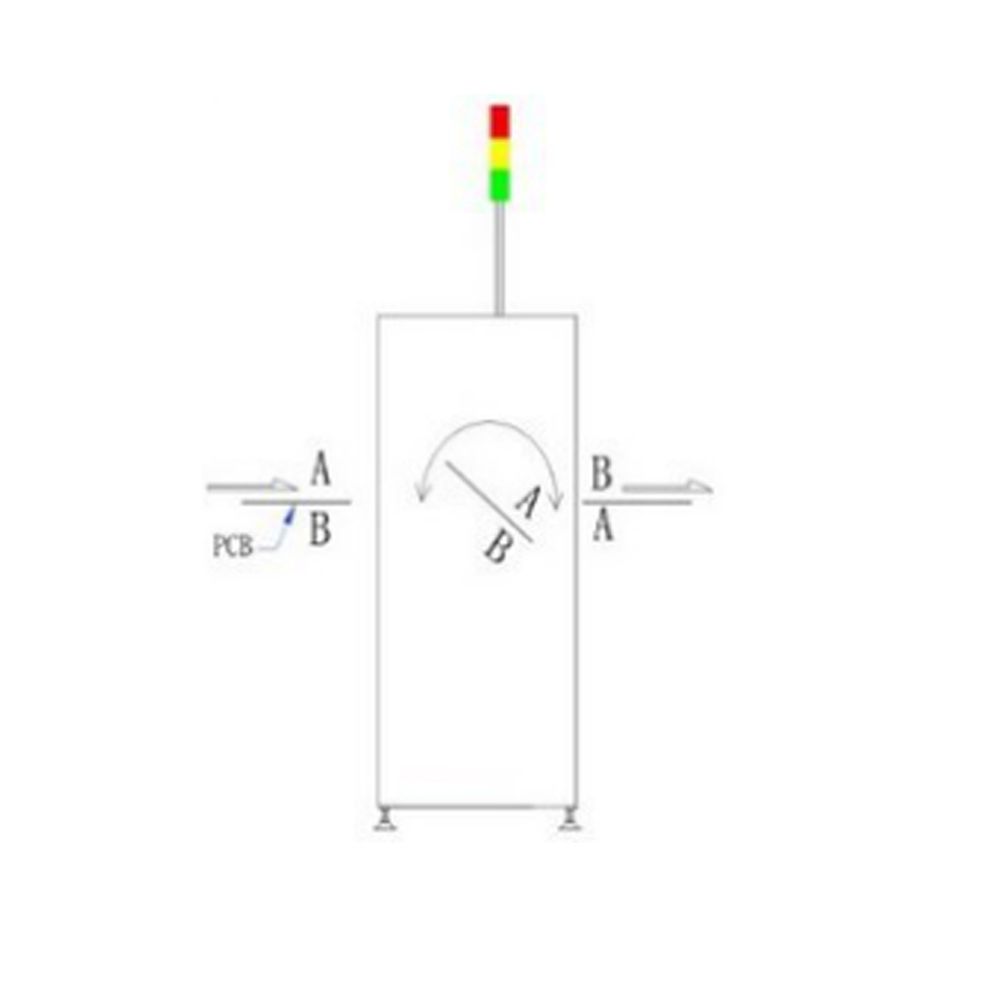

This unit is used to invert PCBs(180o) for "double-sided" process.

Features

1. Panasonic PLC+LED touch screen control,easy to operate.

2. Pass through mode provided.

3. Enclosed design with built in torque limiter ensure highest level of safety.

4.Top cover can be opened,esay to make the maintenance.

5. Small machine footprint.

6. Smooth and precise inverting motion.

7.Parallel and smooth width adjustment(leadscrew)

8. With SMEMA signal.
