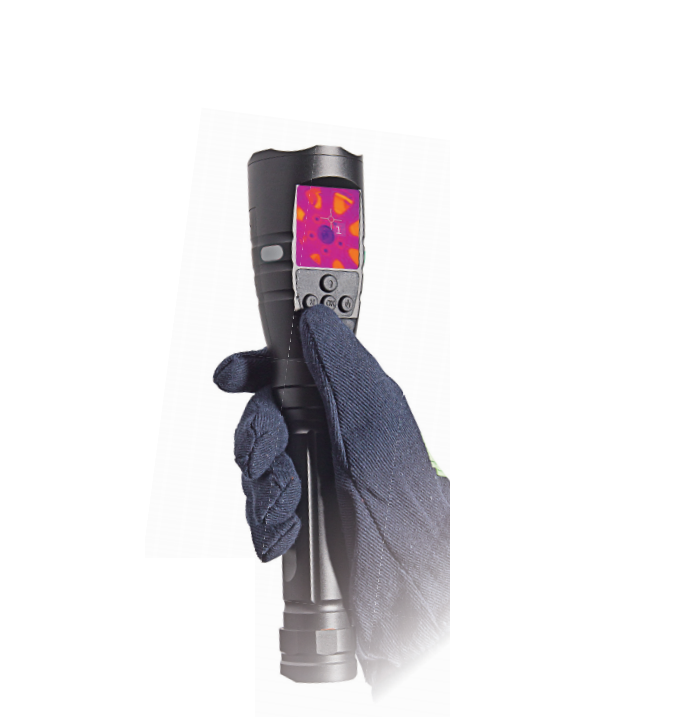

CEM T-60 ໄຟສາຍທີ່ມີຮູບພາບຄວາມຮ້ອນ (-20°C ~330°C, 205x156)
Imaging and optical data
IR resolution: 205x156 focal plane array (FPA), uncooled microbolometer
Field of View (FOV): 36°x27°
Spatial resolution: 3mrad (IFOV)
Thermal sensitivity/NETD: < 0.05°C @ +30°C (+86°F) / 50 mK
Image frequency: 9Hz
Focus: Focus free
Image presentation
Display: 2.4" 320x240 TFT
Image modes: IR image, visual image, picture in picture, AUF
Color palettes: GRAY/GRAY IRON/IRON/RAINBOW/FEATHER
Measurement
Object temperature range: -20°C to 330°C (-4°F to 302°F)
Accuracy: ±5°C (±3.6°F) or ±3% of reading
Storage of videos/images
Storage media: 4Gbytes eMMC
Video storage format: Standard MPEG-4, 640x480@30fps, on memory card > 60 minutes
Image storage format: Standard JPEG, including measurement data, on memory card > 1000 pictures
Storage mode: IR/visual images; simultaneous storage of IR and visual images
Digital camera
Built-in visible light digital camera: 2M Pixels
Data communication interfaces
USB interfaces: USB-micro, data transform between camera and PC, remote control, live video
Wi-Fi connectivity: Wi-Fi connectivity allows to send images and data to mobile devices remote control, live video
Size(HxWxD): 75 x75 x 258mm
Weight: 547g
Accessories:
Infrared camera with lens, CVBS cable, Gift box.
