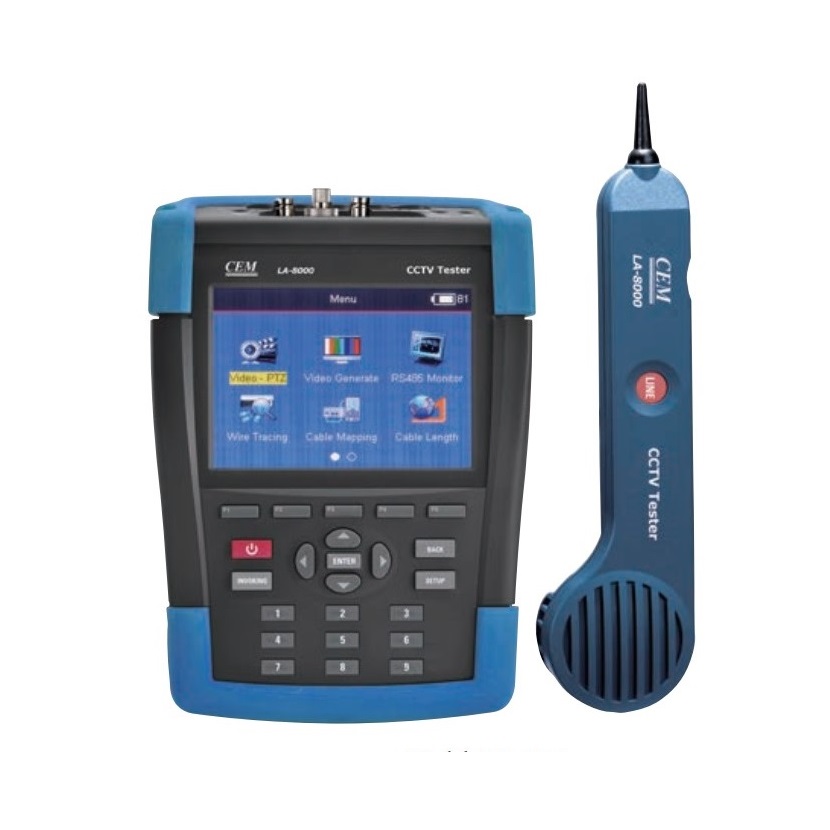

CEM LA-8000 CCTV Monitor Tester & Cable Tester & Digital Multimeter
Video Signal Test
Signal Mode: PAL/NTSC automatically suitable
Analog Video Input
Video Signal Output Through the analysis of synchronous level signal attenuation amplitude Independently output 1 channel analog video signal
PTZ Control and Testest
Communication: RS485
Support more than 20 kinds of Protocols
Baud Rate: 2400 4800 9600
Digital Multimeter Test
DC Voltage: Max 1000V Accuracy 0.1V
AC Voltage: Max 750V Accuracy 0.1V
DC Current: Max 10A Accuracy 0.1mA
AC Current: Max 10A Accuracy 0.1mA
Resistance: Max 40MΩ Accuracy 0.1Ω
Diode Polarity Test
Continuity Test
Cable Test
Check open, short, cross reverse wire map for RJ45 and BNC
Trace and locate RJ45 BNC and other metal cables.
Measure the RJ45 and BNC Cable length up to 620 meters, with 98% accuracy
Measurement of power and attenuation in optical fiber transmission
Other Function
Test the RS485 Data sent from controlling device
1 channel audio signal input to test whether the sound is OK
Adjust the screen brightness, contrast, color saturation to adapt different working environment
Dimensions:190mm x 150mm x 48mm
Weight: 230g
Accessories: rechargeable lithium battery, gift box with carrying case.
