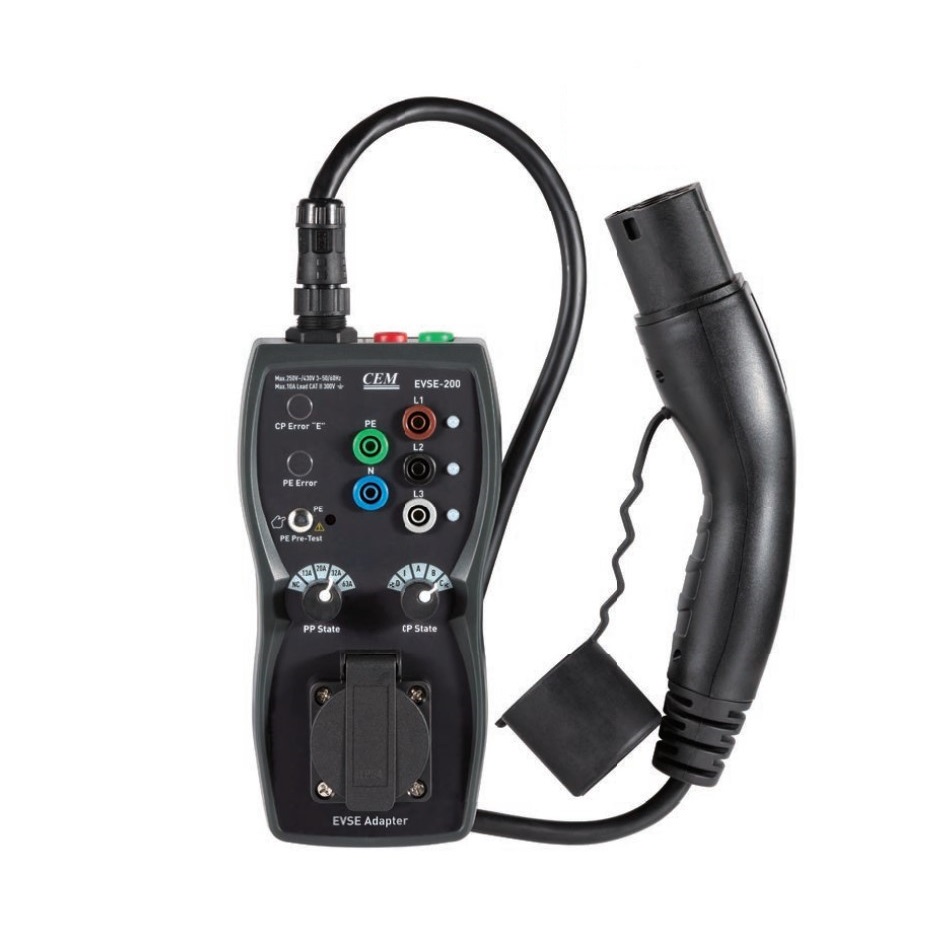

Input: Max.250V (single -phase system)/max.430V (three -phase system).50 /60HZ,MAX 10
EVC -200 -Connector: AC charging mode 3
EVC -100 -Connector: AC charging mode 3
Dimensions(B*H*L): 235*60*60mm (length without connecting cable)
Weight: 832g (Weight without connecting cable)
IP protection: IP54
Safety: IEC/EN 61010-1 IEC61010-2
Overvoltage category: CAT II 300V
Pollution degree: 2
Protection classification: double insulation
Altitude: Max 2000 meters above sea level
Working temperature range: 0-40°C
Maximum relative humidity: 95 %RH (0-40°C), non-condensing
Storage temperature range: -10-50°C
Maximum relative humidity: 90 %RH (-10-40°C) 80 %RH (40-60°C)
PE pre-test: yes
PP simulation
open (Error condition or disconnection of plug)
13A; 20A Coding for maximum current of the EV cable.
32A; 63A EVSE is connected and can operate in any of these coding position.
CP simulation
states A (EV disconnected)
states B (EV connected)
states C (EV charged without ventilation)
states D (EV charged with ventilation)
CP error“E”: on (CP short to PE via diode)/off
PE error: on (PE error)/off
