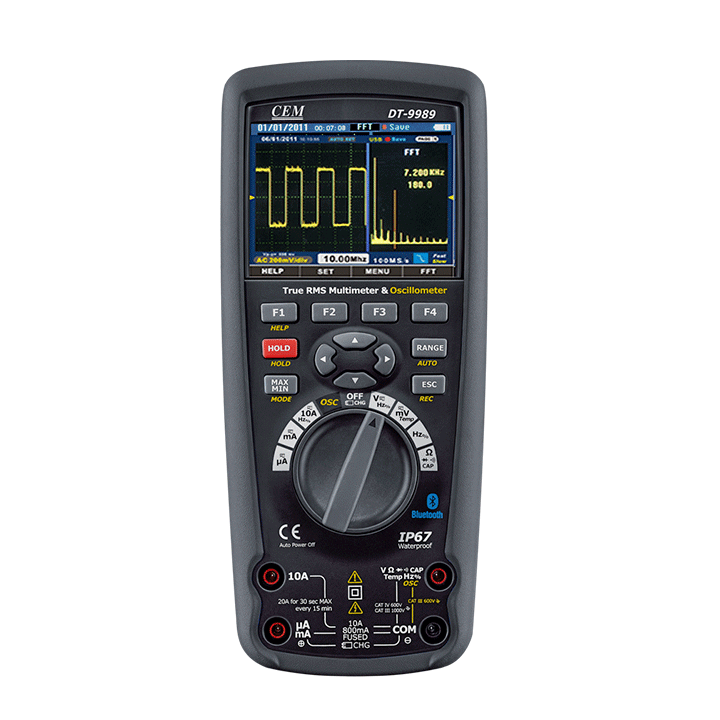

CEM DT-9989 Multimeter ອຸດສາຫະກໍາ T-RMS ມືອາຊີບ (True RMS, DC/AC 1000V, 10A)
Oscilloscope Functions
Display Size: 3.5" color LCD; 320 x 240 pixels
Bandwidth: 20MHz
Real time sample rate: 50MS/s
Risetime: 10ns
Channels: 1
Vertical Sensitivity: 50mV to 200V/div
Vertical Resolution: 8 bits
Trigger Mode: Free Run, falling edge, rising edge
Trigger Source: Internal
Trigger Coupling: AC/DC
Input impedance: 1MΩ/200pF
Max Input Volatage: 1000V(peak)
Cursor Measurement: Voltage and time/ Frequency
True RMS Multimeter Functions
Voltage DC: 1000V / 1μV / ±(0.025% + 5)
Voltage AC: 1000V / 1μV / ±(0.4% + 40)
Current DC: 10A / 0.01μA / ±(0.15% + 2)
Current AC:10A/0.01μA / ±(0.6% + 5)
Temperature:-50ºC to 1000ºC/0.1ºC / ±(1.0% + 2.5ºC)
Resistance:50MΩ/0.01Ω / ±(0.05% + 2)
Capacitance:10mF/0.001nF / ±(1.0% + 5)
Frequency: 10MHz / 0.01Hz / ±(0.005% + 1)
Diode and Continuity: Yes
PC Interface: Bluetooth
Power Supply: 6 hours Li-ion rechargeable battery; AC daptor/charger
Size (H x W x D): 220mm x 96mm x 60mm
Weight: 631g
