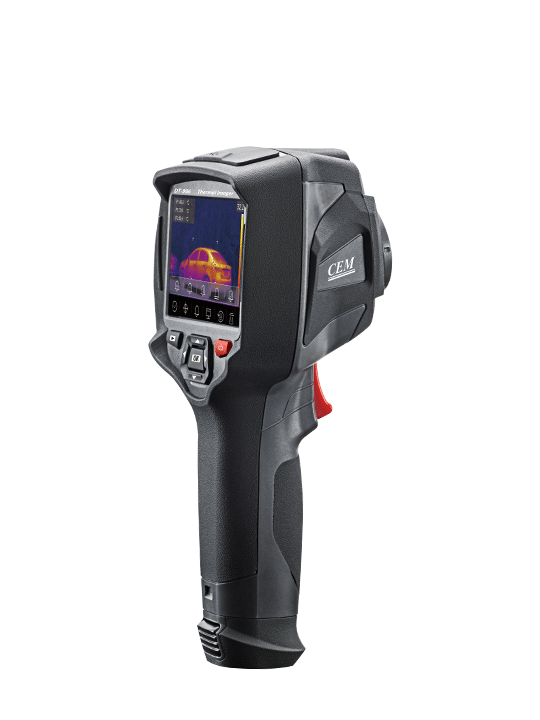

CEM DT-983 ຮູບພາບຄວາມຮ້ອນປະສິດທິພາບສູງ (-20°C~330°C, 80x80pixels, 4.53mrad)
Imaging and optical data
IR resolution: 80x80
Field of view (FOV): 21°x21°
Spatial resolution (IFOV): 4.53mrad
Thermal sensitivity/NETD: < 0.05°C @ +30°C/(+86 o F) < 0.1°C/100mK
Image frequency: 9Hz
Focus: Focus free
Image presentation
Display: 3.5" 640x480 touch screen
Image modes: IR image, visual image, picture in picture, AUF
Color palettes: IRON, Rainbow, Grey, Grey Inverted, Brown, Blue-red, hot-cold, Feather
Measurement
Object temperature range: Low range: –20°C to +330°C (–4°F to +302°F)
Accuracy: ±5°C (±3.6°F) or ±3% of reading
Measurement analysis
Emissivity adjustable: 0.01~1.0 Adjustable
Automatic hot /cold detection: Auto hot or cold spotmeter marks
Set-up
Laser/floodlight: < class2 / white LED floodlight
Language selection: English, Chinese, French, German, Spanish
Storage of videos/images
Storage media: 4Gbytes eMMC
Video storage format: Standard MPEG-4, 640x480@30fps, on memory card > 60 minutes
Image storage format: Standard JPEG, including measurement data, on memory card > 1000 pictures
Storage mode: IR/visual images; simultaneous storage of IR and visual images
Digital camera
Built-in visible light digital camera: 2M Pixels
Data communication interfaces
USB interfaces: USB-micro, data transform between camera and PC
Remote control, live video
Wi-Fi connectivity: Wi-Fi connectivity allows to send images and data to mobile devices remote control,live video
Power system
Battery: Lithium polymer battery, 4 hours operating time
Input voltage: DC 5V
Charging system: In camera (AC adapter)
Power management: Automatic shutdown and sleep mode (user selectable)
Accessories:
Hard transport case, 7.5mm lens, Tripod base, AC charger/Power supply, Battery, software CD-ROM, Handstrap, micro SD card, USB cable & RCA cable, Gift box.
