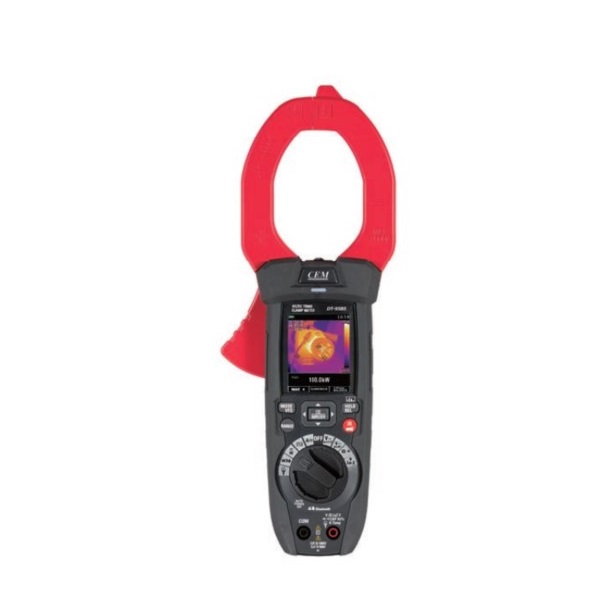

CEM DT-9585 ເຄື່ອງວັດແທກຄຸນນະພາບພະລັງງານດ້ວຍຕົວວັດແທກຄວາມຮ້ອນ InfraRed (AC/DC:2000A)
Thermal Imager
IR resolution: 80x80 pixels
Field of View (FOV): 21° x 21°
Thermal sensitivity/NETD: <0.08°C/80mK
Image frequency: 50Hz
Object temperature range: -20-260°C (-4-500°F)
Spectral range: 8-14 µm
Color palettes: Iron/Rainbow/Grey/Grey Inverted/Feather
Accuracy: ±2°C (±3.6°F) or ±2% of reading *
True RMS Multimeter Functions
DCV: 1500V / 100mV / ±(0.5% + 5d)
ACV: 1000V / 100mV / ±(1.2% + 5d)
DCA: 2000A / 0.01A / ±(2% + 8d)
ACA: 2000A / 0.01A / ±(2.5% + 5d)
Flexible A: 3000A / 0.01A / ±(3.0%+5d)
Resistance: 60MΩ / 0.1Ω / ±(0.8% + 5d)
Frequency: 10kHz / 0.01Hz / ±(0.2% + 5d)
Inrush Current: 2000A / 1A
Temperature: 1000°C / ±(1.5%+3°C)
Diode & Continuity:Yes
Voltage and Current Harmonics
Harmonic order Fundamental frequency (45Hz ~65Hz):
DC / ±(5.0%+20d)
H1~H25 / ±(5.0%+10d)
H25~H30 / ±(10%+5d)
THD% / ±(8.0%+10d)
Power
DC Power: 999.9KW / ±(3.5%+5d)
Active AC Power: 999.9KW / ±(2.0%+5d)
Apparent AC Power: 999.9KWA / ±(2.0%+5d)
Active Energy AC: 999.9KWh / ±(2.0%+5d)
Power Factor: -1.0 ~ 0, 0 ~ 1.0 / ±(3% + 1d)
Displacement power factor: 0.3~1 / ±3°
Size (HxWxD): 95mm x 270mm x 42mm
Weight: 550g
Accessories:
Test leads, gift box with carrying case, Temperature probe Li-ion rechargeable battery, AC Charger
