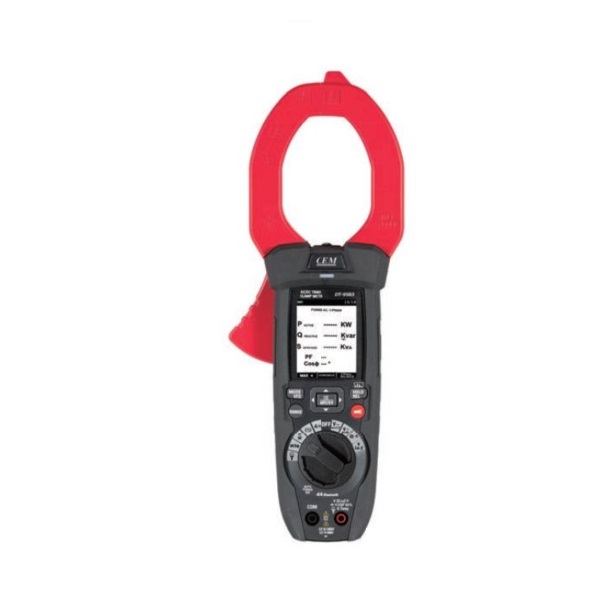

CEM DT-9583 AC/DC Clamp Meters (AC/DC 2000A)
True RMS Multimeter Functions
DCV: 1500V / 100mV / ±(0.5% + 5d)
ACV: 1000V / 100mV / ±(1.2% + 5d)
DCA: 2000A / 0.01A / ±(2% + 8d)
ACA: 2000A / 0.01A / ±(2.5% + 5d)
Flexible A: 3000A/0.01A/±(3.0%+5d)
Resistance: 600kΩ/0.1Ω/±(0.8% + 5d)
Frequency: 10kHz/0.01Hz/±(0.2% + 5d)
Inrush Current: 2000A/1A
Temperature: 1000°C/±(1.5%+3°C)
Diode & Continuity:Yes
Voltage and Current Harmonics
Harmonic order Fundamental frequency (45Hz ~65Hz):
DC / ±(5.0%+20d)
H1~H25 / ±(5.0%+10d)
H25~H30 / ±(10%+5d)
THD% / ±(8.0%+10d)
Power
DC Power: 999.9KW; ±(3.5%+5d)
Active AC Power: 999.9KW; ±(2.0%+5d)
Apparent AC Power: 999.9KWA; ±(2.0%+5d)
Active Energy AC: 999.9KWh; ±(2.0%+5d)
Power Factor: -1.0 ~ 0, 0 ~ 1.0; ±(3% + 1d)
Displacement power factor: 0.3~1; ±3°
Size (HxWxD): 95mm x 270mm x 42mm
Weight: 550g
Accessories:
Test leads, gift box with carrying case, Temperature probe Li-ion rechargeable battery, AC Charger
