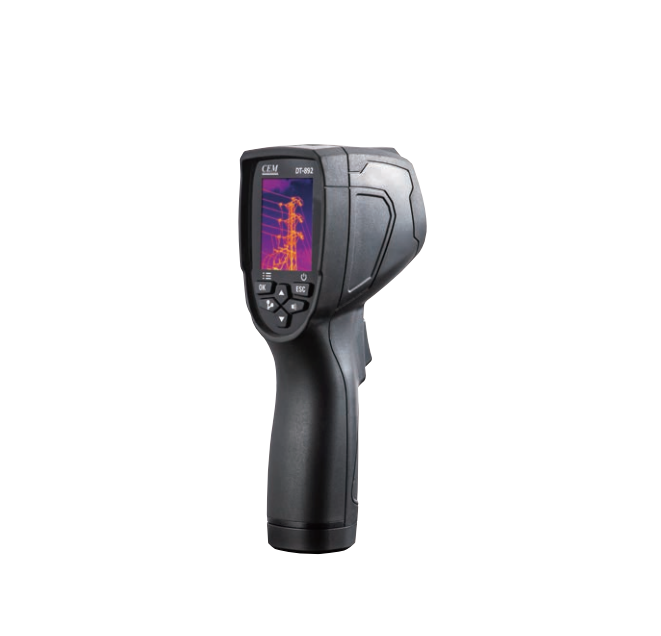

CEM DT-892 ຮູບພາບຄວາມຮ້ອນອຸດສາຫະກໍາ (-20°C-450°C,240x320px)
Imaging and Optical Data
Field of View: 31x23
Spatial Resolution: 3.33mrad
NETD: <0.1°C@30°C(80°F)/100mK
Image Frequency: 50Hz
Focus Mode: Focus free
Focal Plane Array(FPA)/Spectral Range: Uncooled microbolometer/8-14um
IR Resolution: 160x120
Image Presentation
Display: 2" TFT LCD, 240x320 pixels
Color Palettes: IRON
Measurement
Object Temperature Range: -20°C-450°C (-4°F-842°F)
Accuracy: ±2°C(±3.6°F)/ ±2% of reading
Measurement Analysis
Spotmeter: Center Spot
Automatic Hot/Cold Detection: Auto hot or cold markers
Emissivity Correction: 8 pre-define level and Variable from 0.01-1.0-
Storage of Images
Storage Media: 8 Gbytes Micro SD card
Image Storage format: Bitmap(BMP),including measurement data.
Data Communication Interfaces
Interfaces: USB-micro, Data transform between camera and PC
Bluetooth
Power System
Battery: Li-ion battery, 8 hours operting time
Input Voltage: DC 5V
Charging System: In camera(AC adapter)
Power Management: Automatic shutdown
Environmental Data
Operating Temperature Range: -20°C-50°C (-4°F-122°F)
Storage Temperature Range: -40°C-70°C (-40°F-158°F)
Humidity(operating and storage): 10%-90%
Drop test: 2m
Size(HxWxD):180mm x 58mm x 70mm
Weight:480g
Accessories:
Battery, software CD-ROM, Wrist strap, micro SD card, Adaptor, USB cable, Gift box.
