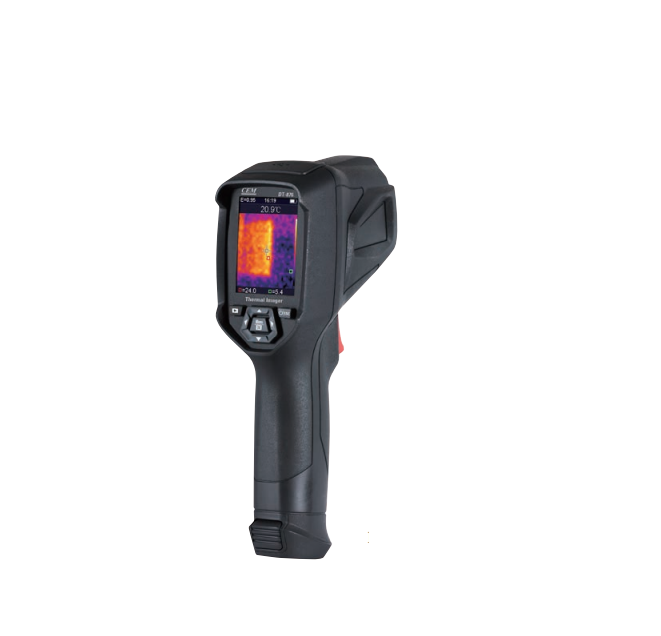

CEM DT-876 ຮູບພາບຄວາມຮ້ອນອຸດສາຫະກໍາ (-20°C-400°C,256x192)
Imaging and Optical Data
Field of View: 50x38°
Spatial Resolution: 5.4mrad
NETD: <0.1°C@30°C(80°F)/100mK
Image Frequency: 25Hz
Focus Mode: Focus free
Focal Plane Array(FPA) Spectral Range: Uncooled microbolometer/8-14um
IR Resolution: 256x192
Visible camera: 2M
Image Presentation
Display: 2.4" TFT LCD, 240x320 pixels
Color Palettes: IRON, RainBow, Grey, GreyInverted, Brown
Measurement
Object Temperature Range: -20°C-400°C (-4°F-752°F)
Accuracy: ±2°C (±3.6°F)/±2% of reading
Measurement Analysis
Spotmeter: Center Spot
Emissivity Correction: 8 pre-defi ne level and Variable from 0.01 to 1.0
Storage of Images: Bitmap(BMP)
Data Communication Interfaces
Bluetooth
Power System
Battery: Li-ion battery, 4 hours operating time
Input Voltage: DC 5V
Charging System: In camera(AC adapter)
Power Management: Automatic shutdown
Environmental Data
Operting Temperature Range: -20°C-50°C (-4°F-122°F)
Storage Temperature Range: -40°C-70°C (-40°F-158°F)
Humidity (operating and storage): 10%-90%
Drop test: 2m
Size (HxWxD): 175mm x 58mm x 70mm
Weight: 450g
Accessories:
Battery, APP software, Adaptor, Carrying case, USB cable, Gift box
