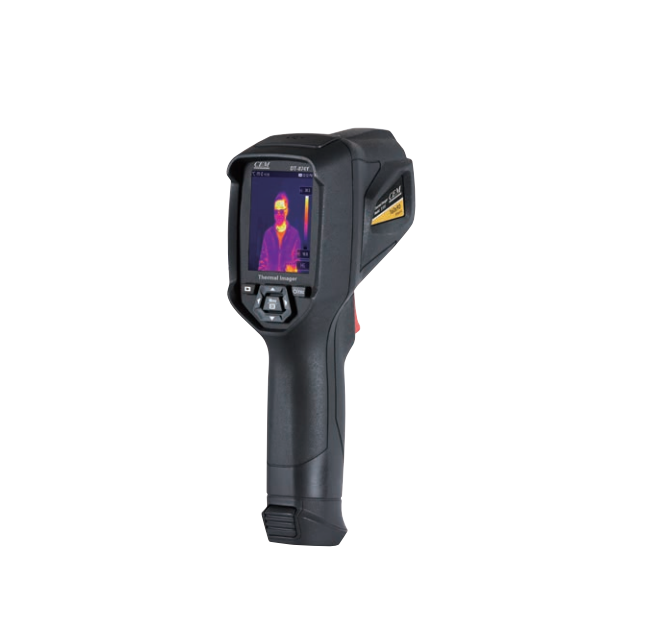

CEM DT-874Y ການຖ່າຍຮູບຄວາມຮ້ອນແບບອັດສະລິຍະ AI ດ້ວຍການກວດອຸນຫະພູມ (-20°C ~ 400°C,120x90)
Imaging and Optical Data
Field of View: 50x38°
Spatial Resolution: 1.79mrad
NETD: <0.1°C@30°C(80°F)/100mK
Image Frequency: 25Hz
Focus Mode: Focus free
Focal Plane Array(FPA) Spectral Range: Uncooled microbolometer/8-14um
IR Resolution: 120x90
Image Presentation
Display: 2.4" TFT LCD, 240x320 pixels
Color Palettes: IRON, RainBow, Grey, GreyInverted, Brown, Blue-red, hot-cold, Feather
Measurement
Object Temperature Range: Screenning mode:32°C~42°C(–89.6°F~+107.6°F)-20°C~400°C (-4°F~752°F)
Accuracy: Screenning mode: ±0.5°C (±0.9°F)in 32°C~42°C ±2°C(±3.6°F)/ ±2% of reading
Screening temperature range: 32°C~42°C
High temperature alarm setting: Default 37.3°C
Full-field high-temperature tracking: Red crosshair mark
Face tracking: Intelligent face tracking, detect 10 faces at the same time
Measurement Analysis
Spotmeter: Center Spot
Automatic Hot/Cold Detection: Auto hot or cold markers
Emissivity Correction: 8 pre-define level and Variable from 0.01 to 1.0
Storage of Images: 8G SD card
Image Storage format: Bitmap(BMP),including measurement data.
Data Communication Interfaces: USB-C interface
Power System
Battery: Li-ion battery, 4 hours operating time
Input Voltage: DC 5V
Charging System: In camera(AC adapter)
Power Management: Automatic shutdown
Environmental Data
Operating Temperature Range: -20°C~50°C (-4°F~122°F)
Storage Temperature Range: -40°C~70°C (-40°F~158°F)
Humidity(operating and storage): 10%~90%
Drop test: 2m
Size (HxWxD): 175 x 58 x 70mm
Weight: 450g
Accessories:
Earphone (Optional), Battery, software CD-ROM, Wrist strap, micro SD card, Adaptor, USB cable, Gift box.
