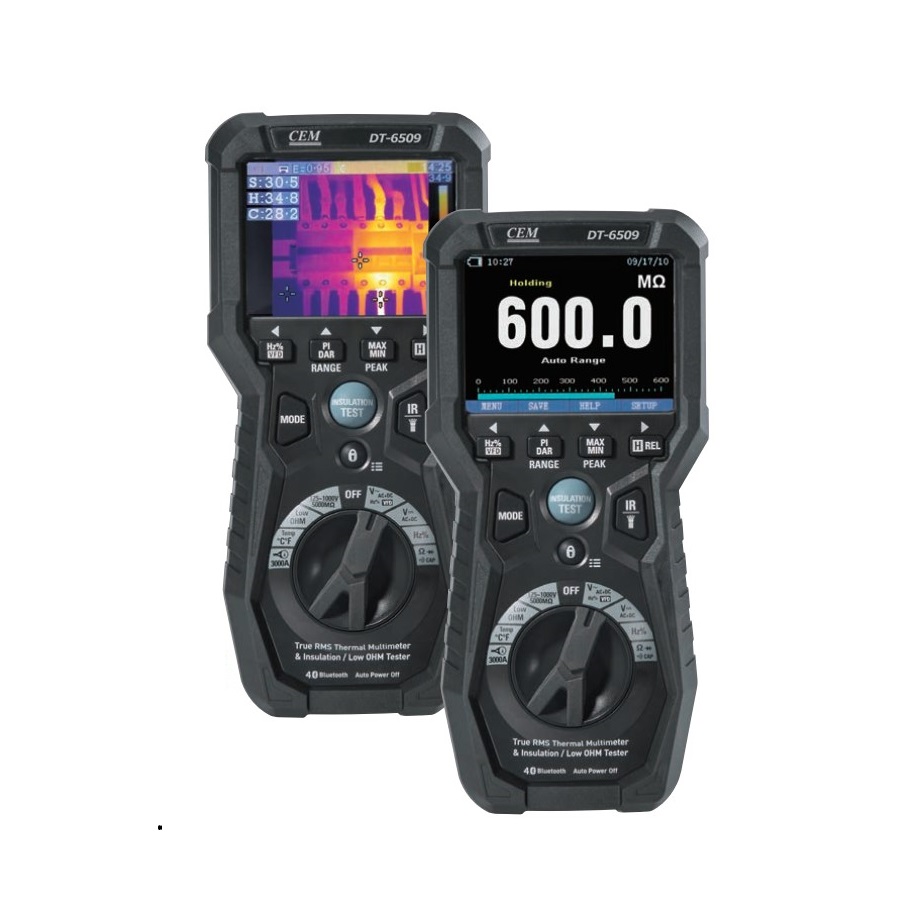

CEM DT-6509 3 in 1 ມືອາຊີບ Insulation Tester ກັບ Thermal Imager (80x80px, 1000V)

Thermal Imager

IR resolution: 80x80 pixels

Field of View (FOV): 21° x 21°

Thermal sensitivity / NETD : <0,1°C @ +30°C (+86°F) / 100mK

Image frequency: 50Hz

Object temperature range: -20~260°C (-4~500°F)

Focus mode / Focal length: Focus free / 7.5mm

Spectral range: 8~14 µm

Color palettes: Iron/Rainbow/Grey/Grey Inverted

Accuracy: ±3°C (±5,4°F) or ±3% of reading (Environment temperature 10°C~35°C, object temperature > 0°C.)

True RMS Multimeter Functions

DCV Range / Resolution / Accuracy: 1000V / 100mV / ±(0,5%+5)

ACV Range / Resolution / Accuracy: 1000V / 100mV / ±(1,2%+5)

Resistance Range / Resolution / Accuracy: 60MΩ / 0,1Ω / ±(0,8%+5)

Capacitance Range / Resolution / Accuracy: 6000uF / 0,01nF / ±(3,0%+8)

Frequency Range / Resolution / Accuracy: 10kHz / 0,01Hz / ±(1,0%+5)

Diode and Continuity: Yes

Power Supply: 6 hours Li-ion rechargeable battery; AC Adaptor/charger

Insulation Tester

125V (0%~20%): 125kΩ~5000MΩ / 0.001MΩ / ±(2.5%+8)

250V (0%~20%): 250kΩ~5000MΩ / 0.001MΩ / ±(2.5%+8)

500V (0%~20%): 500kΩ~5000MΩ / 0.001MΩ / ±(2.5%+8)

1000V (0%~20%) 1MΩ~5000MΩ / 0.001MΩ / ±(2.5%+8)

Low OHMS

Low Resistance: 1,0~60,00Ω

60,00~600,0Ω

Size (HxWxD): 97mm x 210mm x 68mm

Weight: 634g

Accessories: Test leads, Li-ion battery, Type K temperature probe, Software, gift box with carrying case.
