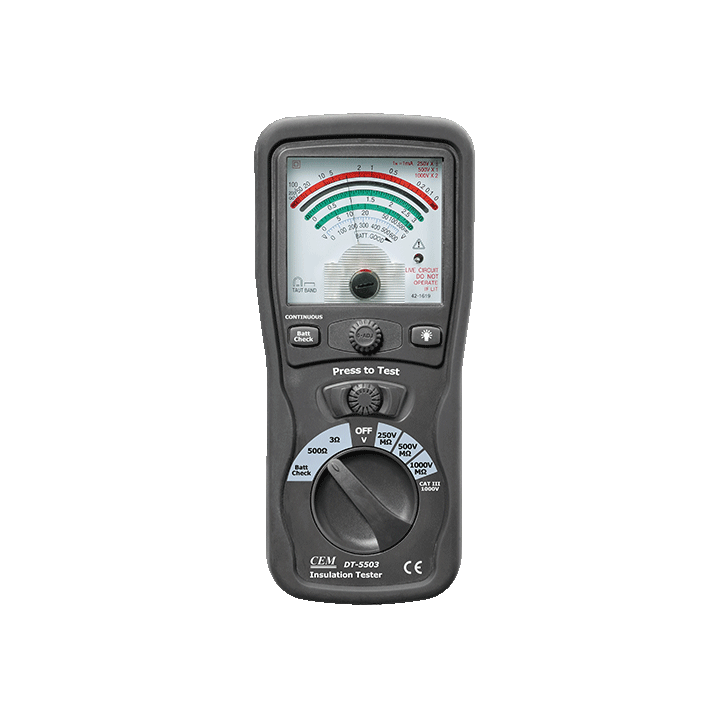

CEM DT-5503 ເຄື່ອງທົດສອບການສນວນອະນາລັອກ (AC-600V, DC-1000V, 0-400MΩ)
Insulation Test
DC Test Voltage: 250V 500V 1000V
Measuring Ranges (Mid-Scale Value): 0-100MΩ(1MΩ);0-200MΩ(2MΩ);0-400MΩ(4MΩ)
Rated Current: 1mA DC+20%, -0%
Output short Circuit Current: 1.3mA DC approx
Accuracy Guaranteed Ranges: 0.05-10MΩ ±5%; 0.1-20 Ω ±5%; 0.2 -40MΩ ±5%;
Accuracy: ±7% of Scale length at ranges other than above ranges
Continuity Test Ranges
Accuracy: ±1.5% of Scale Length
Open Circuit Voltage Output: 4.1VDC (Approx)
Short Circuit Current Output: 210mA Min
AC Voltage Warning
AC Voltage Range: 0-600V AC for 30 seconds
Accuracy: ±5% of Scale Length
Input Impedance: 1.2MΩ
General
Withstand Voltage: 7400V AC 50Hz or 60Hz for one minute between electrical circuits and housing case
Safety Standards: IEC 61010-1 CAT III
Size (H x W x D): 200mm x 92mm x 50mm
Weight: 546g
Accessories
Test leads, “AA” Battery x 6 and gift box with carrying case.
