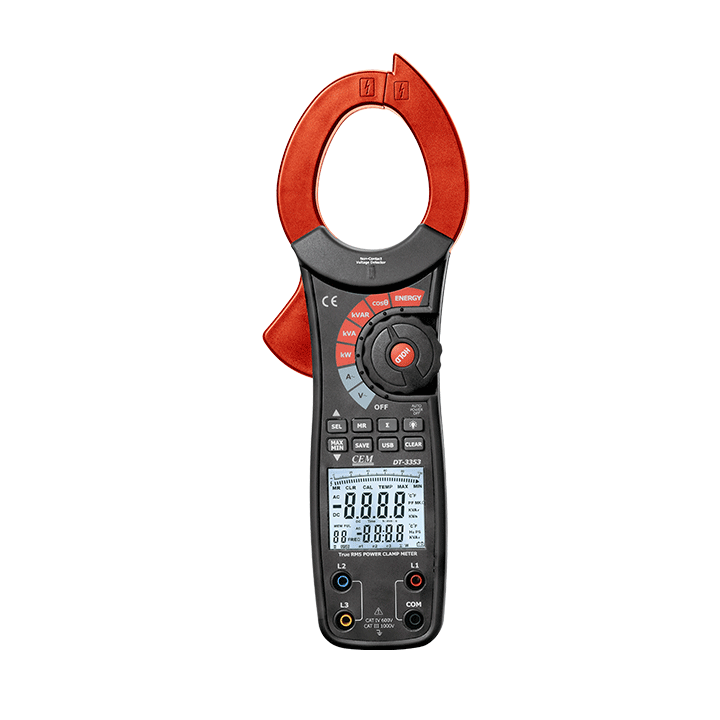

CEM DT-3353 AC ວັດ Clamp Meter (750kVA, AC-1000A/750V, True RMS)
Function: Range - Basic Accuracy
AC Voltage: 15V/100V/300V/750V ; ±(1.2%+5)
AC Current: 40A/100A/400A/1000A ; ±(2%+5)
True Power: 0.60kW—750kW ; ±(3%+5)
Apparent Power: 0.60kVA—750kVA ; ±(3%+5)
Reactive Power: 0.60kVAr—750kVAr ; ±(4%+20)of 15V/1000A else±(4%+5)
Power Factor: 0.3-1 ; ±(2%+20)
Phase Angle: 0°-90° ; ±1°
Frequency: 20Hz-200Hz ; ±(0.5%+5)
Energy: 1-9999kWh ; ±(3%+2)
Size (H x W x D): 295mm x 100mm x 46mm
Weight: 537g
Accessories: Test leads, gift box with carrying case and 9V battery, USB Cable, CD Software.
Datasheet
Features |
Analysis for Single Phase and Balanced 3 phase system |
True RMS Value (Voltage and Current) |
Large dual LCD Display with Backlight |
USB interface |
Data Hold , MIN / MAX measurement |
True power / apparent power / power factor measurement |
Auto Ranging & Auto Power Off |
Overflow Indication |
Manual Data Memory and Read (99 sets) |
NCV Detection |
2.16” (55mm) Jaw opening |
