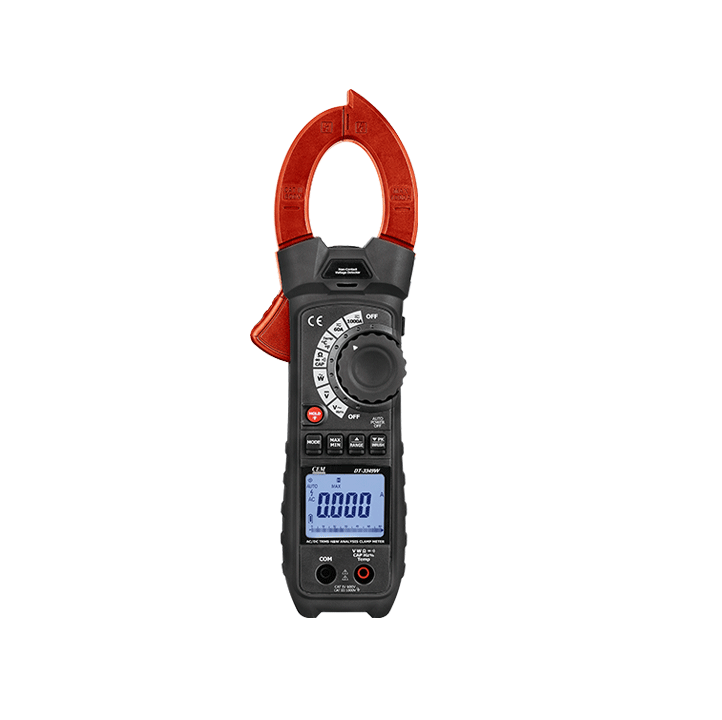

CEM DT-3349W ເຄື່ອງວັດແທກຄຸນນະພາບໄຟ AC/DC (999.9KW, AC/DC-1000A/600V, True RMS)

Function: Max Range - Max. Resolution - Basic Accuracy

AC True RMS Current

60.00A ; 100mA ; ±(2.5%+8d)

1000A ; 1A ; ±(3%+8d)

DC Current

60.00A ; 100mA ; ±(2.5%+0.2A)

1000A ; 1A ; ±(3%+8d)

DC Voltage: 600.0mV, 6000V,60.00V,600.0V,1000V ; 0.1mV ; ±(0.8%+20d)

AC True RMS Voltage: 6.000V,60.00V,600.0V,1000V ; 1mV ; ±(1.0%+5d)

Resistance: 600.0Ω,6.000kΩ,60.00kΩ,600.0kΩ,6.000MΩ,60.00MΩ ; 0.1Ω ; ±(1%+4d)

Capacitance: 6.000nF,60.00nF,600.0nF,6.000uF,60.00uF,600.0uF,6.000uF ; 1pF ; ±(5%+30d)

Frequency: 6.000Hz,60.00Hz,600.0Hz,6.000KHz,60.00KHz,600.0KHz,10MHz ; 0.001Hz ; ±(1.0%+5d)

Frequency: 10Hz to 10kHz,40Hz to 100Hz ;   ; ±(1.0%+5d)

Duty cycle: 0.5%～99.9% ; 0.1 ; ±(1.2%+10d)

Temperature: ﹣50℃～﹢1000℃,﹣58℉～﹢1832℉ ; 0.1℃/℉ ; ±(3%+5℃/9℉)

Total Harmonic Distortion: 99.9% ; 0.1% ; ±(3%+10d)

Harmonic Distortion measurement: 99.9% ; 0.1% ; ±(5%+10d)

Active Power: 999.9KW ;   ; A.error x v.reading+V.error x A.reading

Power Factor: ﹣1.0～0,0～1.0 ;   ; ±(3%+1d)

Diode test: Forward DCA is approx.1mA, open circuit Voltage MAX, 3V

Continuity check: Buzzer sounds at 50Ω

Size(HxWxD): 230mm x 76mm x 40mm

Weight: 315g

Accessories: Test leads, temperature probe, gift box with carrying case, 9V battery
