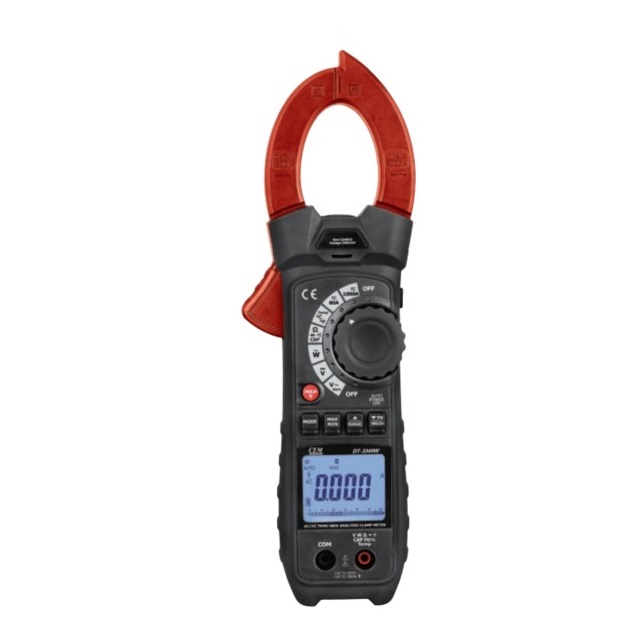

CEM DT-3349W-BT ຄຸນະພາບໄຟຟ້າ AC/DC True RMS Clamp Meter (True RMS,AC/DC 1000A)
Function: Max Range; Max. Resolution; Basic Accuracy
AC True RMS Current:
60.00A; 100mA; ±(2.5% +8d)
1000A; 1A; ±(3% +8d)
DC Current:
60.00A; 100mA; ±(2.5% +0.2A)
1000A; 1A; ±(3% +8d)
DC Voltage: 600.0mV,6.000V, 60.00V, 600.0V, 1000V; 0.1mV; ±(0.8% +20d)
AC True RMS Voltage: 6.000V, 60.00V, 600.0V, 1000V; 1mV; ±(1.0% +5d)
Resistance: 600.0Ω, 6.000kΩ, 60.00kΩ, 600.0kΩ, 6.000MΩ, 60.00MΩ; 0.1Ω; ±(1% +4d)
Capacitance: 6.000nF, 60.00nF, 600.0nF, 6.000uF, 60.00uF, 600.0uF, 6000uF; 1pF; +(5% +30d)
Frequency:
6.000Hz, 60.00Hz, 600.0Hz, 6.000KHz, 60.00KHz, 600.0KHz, 10MHz; 0.001Hz; +(1.0% +5d)
10Hz to 10kHz, 40Hz - 100Hz; ±(1.0% +5d)
Duty Cycle: 0.5%~99.9%; 0.1; +(1.2% +10d)
Temperature: -50°C~1000°C/-58°F~+1832°F; 0.1°C/°F; +(3% +5°C/ 9°F)
Total Harmonic Distortion: 99.9%; 0.1%; ±(3% + 10d)
Harmonic distortion measurement: 99.9%; 0.1%; ±(5% + 10d)
Active Power: 999.9KW; A.error x V.reading + V.error x A.reading
Power Factor: -1.0 ~ 0, 0 ~ 1.0; ±(3% + 1d)
Diode test: Forward DCA is approx.1mA, open circuit Voltage MAX . 3V
Continuity check: Buzzer sounds at 50Ω
Size (HxWxD): 230mm x 76mm x 40mm
Weight: 315g
Accessories:
Test leads, temperarure probe, gift box with carrying case, 9V battery.
