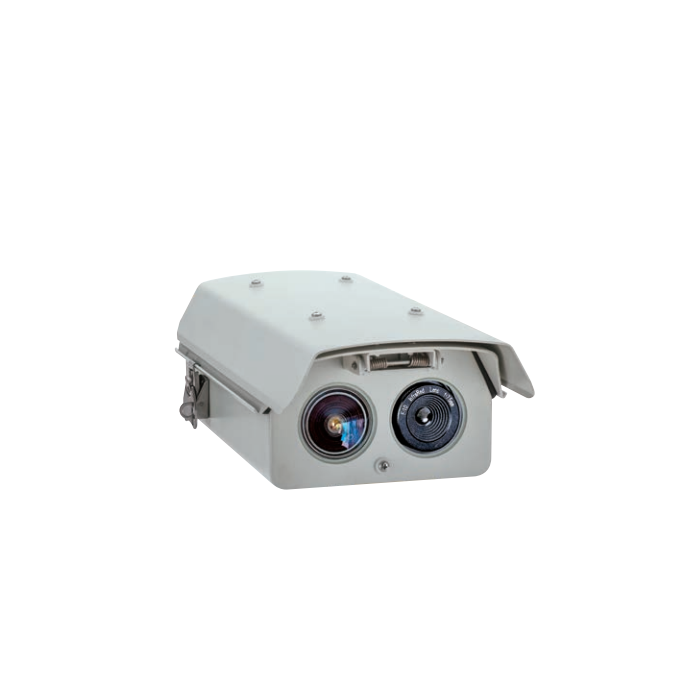

CEM CAM979 ກ້ອງຖ່າຍພາບຄວາມຮ້ອນແບບມືອາຊີບ (-20°C~400°C, 160x120)
Imaging and optical data
Field of view (FOV) / Minimum focus distance: 29.8°x 22.6°/ 0.2m
Spatial resolution (IFOV): 3.33mrad
Thermal sensitivity/NETD: < 0.08°C @ + 30°C(+86°F)/80mK
Image frequency: 50Hz
Focus mode: Manual
Focal length: 7.5mm
Focal Plane Array(FPA)/Spectral range: Uncooled microbolometer/8-14 µm
IR resolution: 160x120
Image presentation
Image modes: IR image, visual image
Color palettes: IRON, Rainbow, Grey, Grey Inverted, Sepia, Blue_Red, Hot_Cold, Humidity
Measurement
Object temperature range: –20°C ~ +150°C (–4°F ~ +302°F), 0°C to +400°C (+32°F to +752°F)
Accuracy: ±2°C (±3.6°F) or ±2% of reading
Data communication interfaces
Interfaces: composite video
Video out: Composite (PAL and NTSC)
Ethernet type, connector type, video streaming: 100Mbps, RJ-45,H.264
Alarm output: 2 relay output
Options Lens
11mm: 20.6°x 15.5°
22mm: 10.4°x 7.8°
33mm: 6.9°x 5.2°
Size (HxWxD): 90mm x 74mm x 74mm
Weight: 1000g
Accessories:
Infrared camera with lens, CVBS cable, RS485 cable, Network cable, Gift box.
